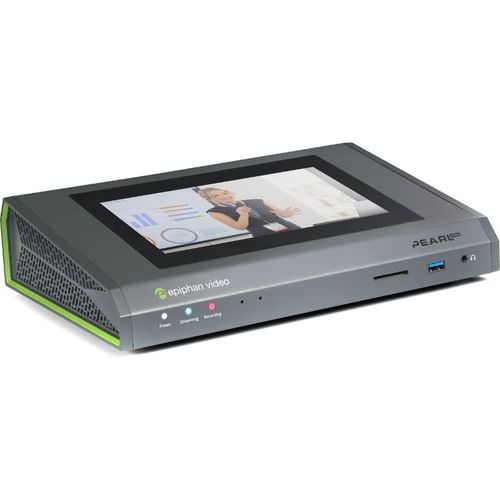

Epiphan Epiphan Pearl Mini Live Production System - EPIPEARLMINI
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
The most reliable, all-in-one video production system that’s small in size and big on pro features.
Record, stream and switch up to three full HD video inputs from HDMI™, SDI, and USB sources. Epiphan Pearl Mini™ takes your video production to the next level.
Stream to viewers everywhere - Simultaneously live stream to YouTube, Facebook or other content delivery networks and content management systems using SRT, HLS, MPEG-DASH, custom RTMP/RTMPS, and RTSP. At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes. Integration with Kaltura and Panopto CMSs means no complicated stream URLs to set up. Just schedule your webcast event and start streaming.
Share your webcast - Locally share unicast or multicast streams to up to 50 viewers with popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP, and SAP.
Secure streaming - Stream content securely with Secure Reliable Transport (SRT) end-to-end 256 bit AES encryption, HLS and MPEG-DASH over HTTPS, as well as Real Time Messaging Protocol Secure (RTMPS).
Leverage SRT for high-quality, low-latency video streaming - The Secure Reliable Transport (SRT) protocol uses the latest in live streaming technology to keep your live video productions looking great. Add a remote guest or contributor over SRT to bring professional-quality sources into your Pearl-powered productions.
1080p HD Recording - Pearl Mini’s hardware-accelerated encoder provides flawless H.264 encoding for maximum performance. Record a program and ISO in AVI, MP4, MOV, or MPEG-TS formats directly to a 512 GB EXT4 SD card* [User Supplied] and automatically upload to a USB stick or server on the network.
Automatic or manual file uploads - Fail proof recordings and upload files automatically to a server while you record locally to the SD card. Transfer recordings to a USB drive or network storage (FTP or SFTP) for post processing.
SD Card - Save recordings directly to a 512 GB EXT4 SD card (user supplied). Easily download recordings and manage files using the Admin panel or Epiphan Live.
Switch video sources live - Incredibly easy to use, Pearl Mini’s 7 inch touch screen makes switching between video sources and layouts a breeze. Or use the browser-based Epiphan Live and switch from almost anywhere using a tablet, PC, or mobile phone.
Custom layout designer - Design custom layouts like PiP with the easy drag-and-drop custom layout editor. Combine, crop, and scale video sources to make dynamic layouts. Add transparent png images, custom backgrounds, text overlays, timestamps and more.
Easy PiP layouts - Make PiP, side-by-side, three quarter layouts and more for dynamic looking visual presentations. The possibilities are endless.
Images and dynamic text - Customize the look of your event with transparent .png images and custom backgrounds. Easily add timestamps and other dynamic text content to layouts. Create custom system variables for even more flexibility, like adding the current GPS location.
Other Great Features- Configuration presets - Quickly apply settings to your Pearl Mini video encoder with a configuration preset and reconfigure it on the fly for a consistent set up each time. You can even download a configuration preset and upload it to other Pearl Mini systems.
- AV Sync - Adjust AV synchronization on each video input from -300 ms to 300 ms and instantly preview the results.
- Custom no-signal images - Be prepared for any signal loss by setting a custom image to maintain your viewer’s engagement.
- Deinterlacing - Convert an interlaced video input signal to a non-interlaced signal.
- USB camera control - Control the contrast, brightness, saturation and more on connected USB web cameras from the Admin panel.
- On-air status light - Connect a USB status light* and instantly see when streaming or recording is in progress. Select models from Busylight and Delcom Products supported.
- Multi-track recorders - Record multiple channels in a single multi-track file and ensure recordings start and stop at the same time. The built-in synchronization tool lets you split the file into individual tracks for post-processing.
- EDID compatibility built in - Pearl Mini video encoder has a robust, factory-set extended display identification data (EDID) so that the video input ports correctly emulate a monitor for the connected video input source. Custom EDIDs are supported.
- Time sync (NTP, PTP, RDATE) - Use an NTP (RFC 868), RDATE, or PTP v1 (IEEE-1588-2002 V1) time server to synchronize the system time that’s used for time stamps and labeling recordings, or set the system time manually.
Specifications
| Video inputs | Local video inputs: | (1) 3G SDI (2) HDMI™ 1.4a1 (1) USB 3.0 (UVC)2 - rear panel |
| Video over Ethernet:2 | (1) RTSP (1) SRT (push) | |
| Connectors: | (2) HDMI type A (female) (1) BNC (female) (2) USB-A (female) - rear panel (1) RJ-45 (female) | |
| Aspect ratios: | 3:2, 4:3, 16:9, 16:10, and custom aspect ratios | |
| Standard resolutions: | PAL, PAL wide, NTSC, NTSC wide | |
| Input resolution range: | 640×480 to 1920×1200 | |
| Frame rate: | Up to 60 fps | |
| Video input color spaces: | HDMI: RGB 4:4:4, YCRCB 4:2:2, YCRCB 4:4:4 SDI: RGB 4:4:4, YCRCB 4:2:2 | |
| Deinterlacing: | Yes | |
| Maximum cable length for 3G SDI: | 300 ft | |
| Maximum cable length for USB 3.0: | 6 ft | |
| Audio inputs | Analog audio inputs: | (2) XLR mic level/pro line level (+4.0 dBu) up to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or L/R stereo pair) - Phantom optional (2) 1/4" TRS pro line level (+4.0 dBu) up to to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or two L/R stereo pairs) (1) RCA consumer line level -10 dBV (L/R stereo pair) (1) 3.5 mm stereo input for electret microphones (unbalanced) |
| Connectors: | (2) XLR/TRS combo jacks (female) (2) RCA (female) (1) 3.5 mm (female) - rear panel | |
| Digital audio inputs3: | (1) SDI4 (2) HDMI (2) USB (rear panel) (1) RTSP (from RTSP input over Ethernet) (1) SRT (from SRT input over Ethernet) | |
| Connectors: | (2) HDMI type A (female) (1) BNC (female) (2) USB-A (female) - rear panel (1) RJ-45 (female) | |
| Audio gain control: | 0 dB to +30 dB | |
| Audio mute: | Yes | |
| Configurable audio delay: | -300 ms to +300 ms | |
| Video processing | Video output color space: | 4:2:0, 8 bits per color |
| Video codec: | H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color Encoding profile: High, Main, Baseline Profile levels: 3.0, 3.1,3.2,4.0,4.1 Motion JPEG | |
| Bitrate: | 1 to 50 Mbps (selectable) | |
| Bitrate control: | Constant | |
| Hardware accelerated video encoding: | Optional | |
| Video scaling: | Software | |
| Key frames: | 1/2 s, and 1 s up to 5 s in 1 second intervals | |
| Audio Processing | Compression: | MP3, AAC, and PCM |
| Sampling rate: | MP3: 22 kHz, 44 kHz, 48 kHz AAC: 16 kHz, 22 kHz, 44 kHz, 48 kHz PCM: 22 kHz, 44 kHz, 48 kHz | |
| Bitrate: | 64 to 320 kbps (MP3 and AAC) | |
| Video output | Signal types: | (1) HDMI 1.4a (3) H.264/AVC digital video over Ethernet |
| Connectors: | (1) HDMI (1) RJ-45 (female) | |
| Streaming protocols: | MPEG-TS, and FLV RTSP over TCP/UDP SRT (push) over UDP HLS (push) over HTTP/HTTPS MPEG-DASH (push) over HTTP/HTTPS Multi-Publish to Streaming Server / CDN (SRT, RTSP, RTMP, RTMPS) HLS (pull) - Native Apple HTTP/HTTPS stream for iPad, iPhone and iPod Touch | |
| Multicast streams: | RTP, MPEG-TS & RTP, and MPEG-TS over UDP | |
| Resolution ranges: | Recorded: 480p to 1920×1200p Confidence monitoring: 480p to 1920×1200p Streamed: 480p to 1920×1200p | |
| Frame rate: | Up to 60 fps | |
| Formats: | H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color Encoding profile: High, Main, Baseline Profile levels: 3.0, 3.1,3.2,4.0,4.1 Motion JPEG | |
| Network traffic shaping (multicast streams): | 4 Mbps to 95 Mbps (configurable) | |
| Audio output | Analog audio output: | (1) 3.5 mm stereo headphone jack - front panel |
| Digital audio outputs: | RTSP and SRT audio over Ethernet HLS and MPEG-DASH audio over HTTP/HTTPS HDMI audio (embedded) | |
| Monitor and Control | Touch screen: | 7 inch touch screen monitor (built in) resolution: 800x480 |
| USB keyboard: | Connect a standard USB keyboard (optional) | |
| USB status light: | Connect a single USB status light (optional), supported models: -Kuando BusyLight models: UC Alpha and UC Omega -Delcom Products USB HID single color and multi-color signal indicators | |
| Recording and storage | Record formats: | AVI, MOV, MP4, and MPEG-TS |
| File upload formats: | JPEG, PNG | |
| SD card: | Up to 512 GB5 | |
| File system for SD card: | EXT4 | |
| File transfer protocols: | FTP, SFTP, SCP, AWS S3 client, and WebDAV client RSync | |
| Network file share protocols: | CIFS/SMB | |
| File system for USB storage: | FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS | |
| External USB ports: | (1) USB 3.0 0.9A - front panel (2) USB 3.0 0.9A (UAV/UAC) - rear panel | |
| Bitrate: | Up to 50 Mbps | |
| Communication | USB standards: | USB 1.1, USB 2.0, and USB 3.0 HDCP compliant |
| Serial port: | (1) Bidirectional RS-232 (via a USB to serial adapter) | |
| Serial protocols: | Data bits: 7 or 8 (default) Stop bits: 1 Parity: None Flow control: None, Hardware or Software | |
| Serial port baud rate: | 19200 bps | |
| Ethernet host port: | (1) RJ-45 (female) | |
| Ethernet data rate: | 10/100/1000 Base-T, half/full duplex with autodetect | |
| Maximum Transmission Unit: | 68 to 1500 MTU (configurable) | |
| Protocols: | DHCP, TLS 1.2, LDAP, mDNS, UPnP, SAP, RTP, MPEG-TS & RTP and MPEG-TS/UDP, 802.1x, EAPOL, EAP-TTLS, EAP-TLS, PEAP, HTTP, HTTPS, NTP, PTP, FTP, SFTP, SCP AWS S3 | |
| Network discovery/Announce: | UPnP, SAP | |
| Network security | 802.1x EAP methods: | PEAP, EAP-TLS, EAP-TTLS |
| Administration and control | Admin panel: | Local web UI for full administration. On-screen display and mobile UI for confidence monitoring, administration, and control. Local Admin panel access using a USB mouse, keyboard, and monitor connected directly to Pearl Mini with built-in virtual keyboard and touch-screen monitor support. |
| Epiphan Live: | Local web-based UI to easily control streaming, recording, and switching. | |
| Secure access: | Multiple user accounts and passwords. HTTPS for secure Admin panel and Epiphan Live access, as well as local network access to the live channel broadcast. | |
| Remote access: | Remote login for rescue troubleshooting and control. Cloud versions of the Admin panel and Epiphan Live available for Internet access. | |
| API: | Yes (HTTP/HTTPS or RS-232) | |
| Crestron driver: | Yes | |
| Integrations | Content Management Systems: | Kaltura Panopto |
| Cloud-based video production: | AV Studio | |
| General | Power supply: | External: 1.5 A, 100-240 VAC, 50 to 60 Hz (60W); 1.3 A, 100-240 VAC, 50 to 60 Hz (84W) |
| Input power rating: | 12 VDC, 5.0 A (maximum / 60W PSU); 12 VDC, 7.0 A (maximum / 84W PSU) | |
| Operating temperature: | 32° to 104° F (0° to 40° Celsius) | |
| Cooling: | Fan air flow: Left to right | |
| Enclosure: | Metal | |
| Form factor: | Portable desktop model. VESA mountable | |
| Dimensions ( W × D × H ): | 10 1/4” × 6 3/4” × 2 3/8” (261 mm × 172 mm × 60 mm) | |
| Weight: | 3.8 lbs (1.7 kg) | |
| Regulatory compliance: | FCC compliance: Part 15 CE compliance: Directive 2014/30/EU - Electromagnetic Compatibility Directive 2014/35/EU - Low Voltage Directive Directive 2011/65/EU - RoHS |
1 HDCP compliant.
2 One of the video sources you connect can be either a USB, RTSP, or an SRT source; however, you cannot connect more than one of these sources at the same time.
3 Digital audio is de-embedded from the digital source.
4 SD-SDI audio is not supported.
5 SD card is reserved for system use and not for transferring files to other devices. Use a USB memory device or network file transfers. Recording space can be virtually unlimited with offload to networked storage.
