Description

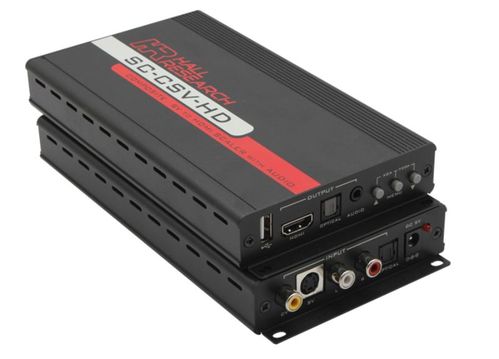

Composite and S-Video to HDMI Video Processor
The SC-CSV-HD has the ability to scale the analog video signal from Composite and S-Video sources into a digital HDMI output with a wide range of HDTV and PC resolutions; up to 1080p.
Along with scaling the video, the SC-CSV-HD converts the input analog or digital optical fiber (TOSLink) audio signals into both an analog and digital format for simultaneous output on the HDMI, Optical Fiber (TOSLink) and analog 3.5mm L/R connectors.
The SC-CSV-HD has an easy to use OSD menu for configuration, picture setup, system information and other advanced options
Key Features- Scales CV or SV analog video to PC (VGA-WUXGA) or HD(480i-1080P) resolutions
- Can automatically detect the connected monitors NATIVE resolution and adjust the output scaling to match
- Supports 50/60 Hz frame rate conversion
- Supports 3D motion video adaptive, 3D de-interlacing and 3:2/2:2 pull down detection and recovery
- Horizontal mirroring (X-axis flip)
- Provides OSD with contrast, brightness, hue, saturation, sharpness, RGB (color tone) and aspect ratio size
Specifications
Video Bandwidth: | 225 MHz/6.75 Gbps |
Input Ports: | 1x CV, 1xSV, 1x L/R, 1x optical audio, 1x USB (Service only) |
Output Ports: | 1x HDMI, 1x optical audio, 1x 3.5mm audio |
Power Supply: | 5 VDC @ 2.6A DC (US/EU Standard, CE/FCC/UL Certified) |
Output Resolution: | Up to 1080p & WUXGA@60 |
Audio Sample Rate: | Up to 48 kHz / Optical & HDMI |
Mounting: | Brackets at each end with screw holes for rack or wall |
Dimensions: | 6.9" (177mm) D x 4.02" (102mm) W x 0.9" (25mm) H/ Jack excluded 7.4"(186.75mm) D x 4.02"(102mm)W x 0.9" (25mm)H/ Jack included |
Weight: | Shipping: 2.50 lbs (1.13 kg) Product: 1.80 lbs (0.81 kg) |
Chassis Material: | Aluminum |
Temperature/Humidity: | Operating: +32 to +122 °F (0 to 50 °C) 20%~90% Storage : -20°C~60°C/ 32°F~104°F |
Power Consumption: | 4.1W |
ESD Protection: | Human Body model: ±8 kV (air-gap discharge) ±6 kV (contact discharge) |
MTBF: | 90,000 estimated |
