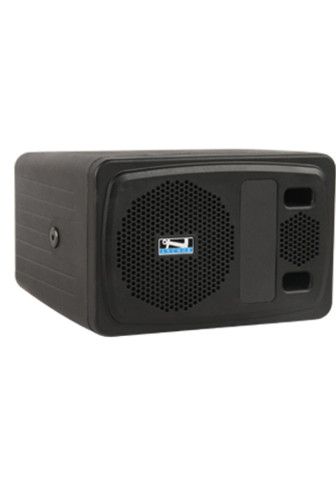

Anchor Amplified Console Speaker Monitor for CouncilMAN Conference System - AN-100CM+

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Anchor Audio CouncilMAN portable conference system travels from the council chambers to the community center with easy set-up and simplicity of use. The system microphones include a Chairman and Delegate model, and are powered by the CouncilMAN speaker the AN-100CM+. Use standard XLR cable to daisy chain microphones and speaker. The system is designed to be flexible to the demands of any environment. Smaller rooms with crowds of 150 people can rely on the system packages, and larger spaces with crowds up to 1500 people can add a Liberty Platinum portable sound system for greater coverage.

30W power
4.5-inch woofer, 10mm dome tweeter
Magnetically shielded
3.5mm line-in
XLR and 1/4-inch balanced line output for recording, connection to house audio system or assistive listening system
RoHS compliant
6 years warranty

Specifications

Speaker Diameter (Driver) :	4.50 in
Speaker Diameter (Driver) :	114.30 mm
Maximum Frequency Response (Bandwidth) :	18 kHz
Maximum Frequency Response (Bandwidth) :	18000 Hz
Minimum Frequency Response (Bandwidth) :	65 Hz
Minimum Frequency Response (Bandwidth) :	0.07 kHz
Maximum SPL (Sound Pressure Level) :	106 dB
Power Handling :	30 Watt
ROHS Compliant :	Yes
Depth :	9 in
Depth :	228.60 mm
Height :	5.25 in
Height :	133.35 mm
Width :	8.40 in
Width :	213.36 mm
Product Weight :	8.50 lbs
Product Weight :	3.86 kg
Warranty (Length/Type) :	6 years
Regulatory Compliance :	CE
Construction :	ABS Plastic
Maximum SPL at rated power :	106 dB (at 1m)
Frequency Response :	65Hz to 18kHz (+/- 3dB)
Speaker Type :	4.5-inch woofer, 10mm dome tweeter (magnetically shielded)
AC Power :	100 to 240Vac, 50/60Hz
