Epson BrightLink Pro 1480FI - V11H921520

Description

Epson BrightLink Pro 1480FI - V11H921520

Create dynamic learning environments with this 3LCD 1080p¹ interactive laser display.

Increase engagement and collaboration in classrooms and meeting spaces with the dynamic BrightLink 1480Fi 1080p¹ 3LCD interactive laser display. Designed with convenience in mind, this ultra bright, 5,000-lumen² ultra short-throw projector offers easy installation and a virtually maintenance-free 20,000-hour laser light source with no lamps³. Offering a 16:9 display up to 100", the 1480Fi provides 75 percent more interactive space than 75" panels for a fully immersive display in meeting spaces and classrooms. With support for optional BrightLink touch modules , it allows up to eight users to work on a single interactive canvas. Plus, it comes with a host of PC-free features including collaborative whiteboard sharing, printing, emailing and more.

Key Features

Digital whiteboard - draw, save, print and email without a PC; share whiteboard content to other network-connected BrightLink projectors⁴
Built-in wireless - use free Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices⁵
SMART Learning Suite - includes 1-year subscription and support for SMART Notebook®, SMART ampTM, SMART labTM, SMART Learning Suite Online and more

^{1 Pixel shifting technology achieves Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 BrightLink 1485Fi and 1480Fi projectors only. Cannot share to earlier models.
5 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats.}

Specifications

Detailed Specifications
Resolution:	1080p (1920x1080)
Display Device:	3LCD
Brightness:	5000 Lumens
Contrast Ratio:	2500000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to WUXGA (1920 x 1200)
Aspect Ratio:	16:9
Number of Colors:	1.07 Billion
Lamp:	Laser Light Engine
Typical Lamp Life:	Up to 20,000 Hours
Lens:	Manual Focus UST LENS: F-number 1.50; Focal Length 3.9 mm
Throw Ratio:	0.30 - 0.42:1
Image Size:	65" - 100"
Throw Distance:	N/A
Keystone Correction:	Horizontal/Vertical ±3°
Projection Methods:	Front/Rear; Tabletop/Wall Mount

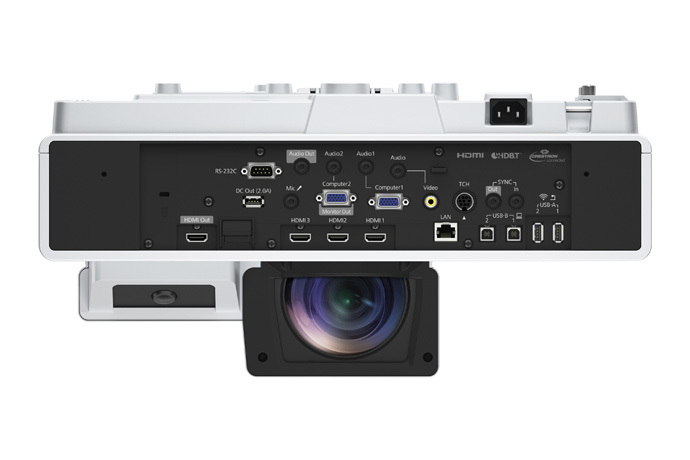

Inputs:	HDMI x 3 VGA x 2 Composite Video (RCA Yellow) x 1 3.5mm Stereo Audio x 3 3.5mm Microphone Input x 1 USB Type A x 3 USB Type B x 2 RJ45 x 1 RS232 x 1 3D Sync x 2 Touch Unit Connection Port x 1
Outputs:	HDMI x 1 VGA x 1 3.5mm Mini Jack Audio x 1
Speaker:	Stereo (8W x 2)
Audible Noise:	27dB (Normal Mode); max. 36 dB (ECO Mode)
Weight:	21.4 lbs.
Dimensions:	18.1" x 18.2" x 14.8"
Accessories:	Lens cover, rear cable cover, Quick Setup Guide, 6' power cable, USB A/B cable (x3), projector remote control with two AA batteries, pen holder, markers for auto screen adjustment, IR reflectors, two (2) interactive pens, extra pen tips, battery charger and two (2) AA rechargeable batteries (for interactive pens), warranty statement, SMART SLS redemption code
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	3-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support
Product Data Sheet:	Product Data Sheet
