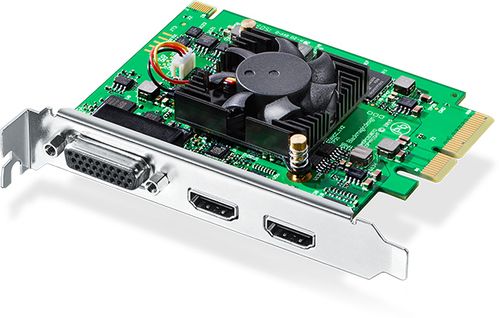

Blackmagic Design Intensity Pro 4K - BMD-BINTSPRO4K

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Intensity Pro 4K lets you capture and playback on PCIe Mac, Windows and Linux computers. Featuring HDMI and analog breakout connections, Intensity Pro 4K works with NTSC/PAL, HD and Ultra HD video with or without compression and is compatible with all popular video editing, audio, and streaming software. DaVinci Resolve Lite and Media Express software are included free so you get professional editing, grading and media management without having to buy extra software!

Connections

1 x HDMI type A connector.

1 x HDMI type A connector.

8 Channels embedded in SD, HD and Ultra HD.

8 Channels embedded in SD, HD and Ultra HD.

Component, Composite or S-Video.

Component, Composite or S-Video.

2 Channel RCA HiFi audio in 24-bit.

2 Channel RCA HiFi audio in 24-bit.

2 Channel 24-bit.

HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.

PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.

Standards

625i/50 PAL and 525i/59.94 NTSC, 480p

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30.

RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD.

Television standard sample rate of 48kHz and 24-bit.

REC 601, REC 709.

10-bit

HDMI 1.4b supports Deep Color and automatically configures to connected display.

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

Software based down conversion during video playback.

Real time SD to 1080HD and 720HD during video capture.

Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

Software

DaVinci Resolve Lite, Media Express, Disk Speed Test, Blackmagic Desktop Video.

Firmware built into software driver. Loaded at system start or via updater software.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.
• Linux

Physical Installation

PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux. Please check the Support pages to see the full system requirements.

What's Included

• Intensity Pro 4K
• Software SD card.
• Breakout Cable

Warranty

12 Months Limited Warranty.
