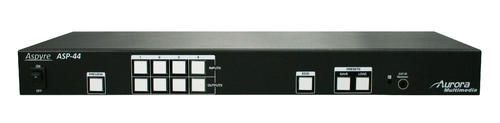

Aurora 4x4 HDMI Matrix 1.3c - ASP-44

Aurora 4x4 HDMI Matrix 1.3c - ASP-44

The ASP-44 4x4 HDMI 1.3c Matrix provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1 channel) digital audio from any of the four HDMI sources to the any four displays at the same time. This solution is well suited for use in home theater, conference room presentation systems, or other similar setting or application.

Benefits

• HDMI 1.3c compliant


• HDCP compliant


• Supports 7.1 channel digital audio


• Default HDMI EDID and can learn the EDID of the displays


• Allows any HDMI display to view any HDMI source at any time


• RS-232 and IR Control


• Ethernet control with optional WACI Nugget


• Front panel control for easy switching and presets


• 1RU and includes mounting ears

Video Output
Bandwidth
Single-link 225MHz [6.75Gbps]

Resolution
480i / 480p / 720p / 1080i / 1080p60 8-12 bit color

HDCP Compliant
Yes


Audio Output
Output
Surround sound (up to 7.1ch) or stereo digital audio


Power
Power Supply
5V 6A DC

Power Consumption
20Watts [max]


Physical
Connectors
(4) HDMI Type A [19-pin female], (1) RS-232 DE-9 [9-pin D-sub female], (1) 3.5 mm IR

Operating Temperature & Humidity
32~104°F [0~40°C], 20~90% RH [no condensation]

Dimensions (LxWxH)
11.4" x 17" x 1.7" [290 x 440 x 44mm]

Weight
2.4 lbs [1.1kg]
