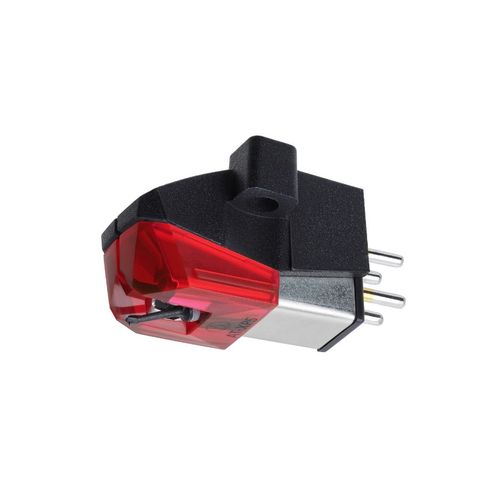

Audio Technica DJ Phonograph Cartridge - AT-XP5
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
DJ Cartridge
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Key Features- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
Specifications
Frequency Response | 20-18,000 Hz |
Channel Separation | 20 (dB at 1 kHz) |
Vertical Tracking Force | 2.0-4.0 g (3.0 g standard) |
Stylus Construction | Bonded round shank |
Recommended Load Impedance | 47,000 ohms |
Output | 5.5 mV (1 kHz, 5 cm/sec.) |
Channel Balance | 2.0 dB (1 kHz) |
Stylus Shape | 0.3 x 0.7 mil elliptical |
Cantilever | Carbon fiber-reinforced ABS |
Mount | Half-inch |
Replacement Stylus | ATN-XP5 |
Coil impedance | 6.7 k ohms (1 kHz) |
DC resistance | 990 ohms |
Recommended load capacitance | 100 to 200 pF |
Coil inductance | 1.0 H (1 kHz) |
Vertical tracking angle | 20° |
Dimensions | 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |
Weight | 6.2 g (0.22 oz) |
