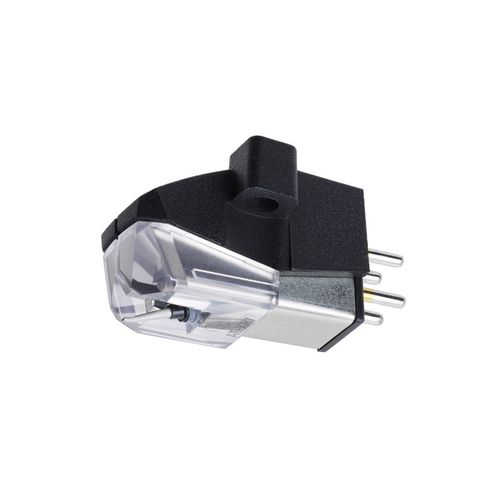

Audio Technica DJ Phonograph Cartridge - AT-XP7
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
DJ Cartridge
The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Key Features- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 6.0 mV high-output level
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
Specifications
Frequency Response | 20-20,000 Hz |
Channel Separation | 22 (dB at 1 kHz) |
Vertical Tracking Force | 2.0-4.0 g (3.0 g standard) |
Stylus Construction | Bonded round shank |
Recommended Load Impedance | 47,000 ohms |
Output | 6.0 mV (1 kHz, 5 cm/sec.) |
Channel Balance | 2.0 dB (1 kHz) |
Stylus Shape | 0.3 x 0.7 mil elliptical |
Cantilever | Aluminum tapered pipe |
Mount | Half-inch |
Replacement Stylus | ATN-XP7 |
Coil impedance | 6.7 k ohms (1 kHz) |
DC resistance | 990 ohms |
Recommended load capacitance | 100 to 200 pF |
Coil inductance | 1.0 H (1 kHz) |
Vertical tracking angle | 20° |
Dimensions | 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |
Weight | 6.2 g (0.22 oz) |
