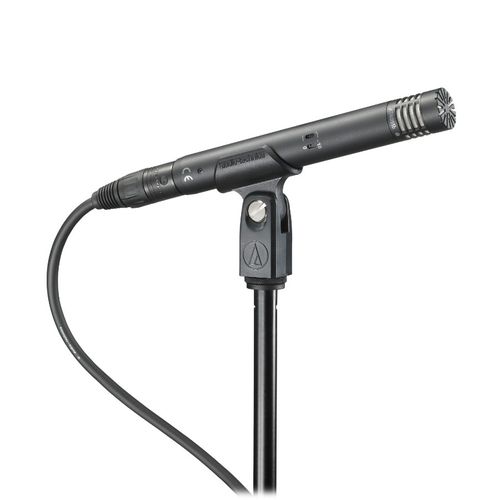

Audio Technica Cardioid Condenser Microphone - AT4051B

Audio Technica Cardioid Condenser Microphone - AT4051B

Part Number: AT4051B
Our Price: $699.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Cardioid Condenser Microphone

Ideal for professional recording and critical applications in broadcast, this versatile studio performer may be used with confidence in a wide variety of professional miking applications. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. Its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments. The microphone is fully RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

The AT4051b consists of two modular subassemblies: an AT4900b-48 body and an AT4051b-EL cardioid head capsule (both available separately). Additional interchangeable capsules are available in omnidirectional (AT4049b-EL) and hypercardioid (AT4053b-EL).

Key Features
  • Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
  • High front-to-back rejection ratio-cardioid polar pattern improves isolation of desired sound source
  • Direct-coupled, balanced output results in a clean signal even under high-output conditions
  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
  • Switchable 80 Hz hi-pass filter and 10 dB pad
  • Rugged turned-brass microphone housing for enduring dependability
  • State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
  • RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications

ELEMENTExternally polarized (DC bias) capacitor
POLAR PATTERNCardioid
FREQUENCY RESPONSE20-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY-34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE50 ohms
MAXIMUM INPUT SOUND LEVEL145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)
NOISE16 dB SPL
DYNAMIC RANGE (typical)129 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO78 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS48V DC, 4.8 mA typical
SWITCHFlat, roll-off; 10 dB pad (nominal)
WEIGHT126 g (4.4 oz)
DIMENSIONS155.0 mm (6.10") long,
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTSAT4049b-EL (omnidirectional);
AT4053b-EL (hypercardioid)
ACCESSORIES FURNISHEDAT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLES1
