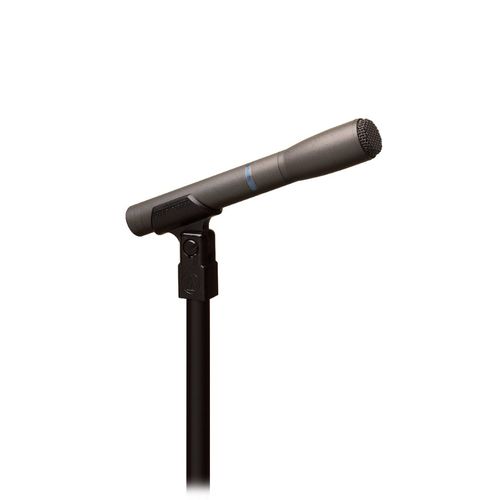

Audio Technica Omni Condenser Microphone - AT8010

Audio Technica Omni Condenser Microphone - AT8010

Part Number: AT8010
Our Price: $169.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Omnidirectional Condenser Microphone

Ideal for interviews, pickup of audience reaction, and musical events, the AT8010 features an omnidirectional polar pattern that provides maximum ambient pickup. The microphone provides an extremely smooth, extended response on- and off-axis. Operates on battery or phantom power.

Key Features
  • Ideal for interviews, group vocals, strings, cymbal overheads, acoustic guitar and piano
  • Omnidirectional polar pattern provides maximum ambient pickup
  • Extremely smooth, extended response on- and off-axis
  • Low sensitivity to popping and overload
  • Operates on battery or phantom power
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

Specifications

ELEMENTFixed-charge back plate permanently polarized condenser
POLAR PATTERNOmnidirectional
FREQUENCY RESPONSE20-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/Octave
OPEN CIRCUIT SENSITIVITYPhantom: –44 dB (6.3 mV) re 1V at 1 Pa
Battery: –45 dB (5.6 mV) re 1V at 1 Pa
IMPEDANCEPhantom: 250 ohms
Battery: 300 ohms
MAXIMUM INPUT SOUND LEVELPhantom: 137 dB SPL, 1 kHz at 1% T.H.D.
Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)Phantom: 113 dB, 1 kHz at Max SPL
Battery: 99 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 2 mA typical
BATTERY TYPE1.5V AA/UM3
BATTERY CURRENT / LIFE0.4 mA / 1200 hours typical
(alkaline)
SWITCHFlat, roll-off
WEIGHT165 g (5.8 oz)
DIMENSIONS178.0 mm (7.01") long,
26.0 mm (1.02") head diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
ACCESSORIES FURNISHEDAT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; battery; soft protective pouch
AUDIO-TECHNICA CASE STYLES4
