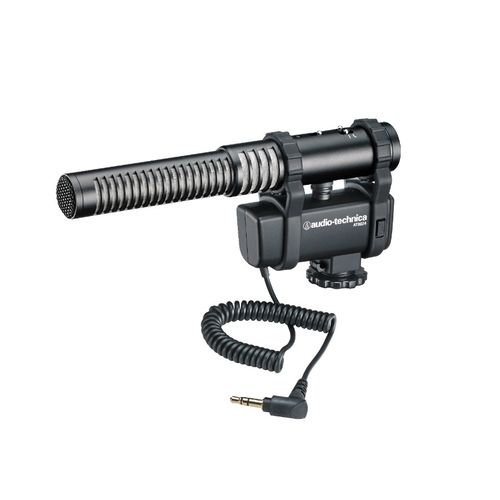

Audio Technica Stereo/Mono Microphone - AT8024

Audio Technica Stereo/Mono Microphone - AT8024

Part Number: AT8024
Our Price: $249.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Stereo/Mono Camera-Mount Microphone

With its lightweight yet feature-rich design, the AT8024 Stereo/Mono Camera-Mount Microphone offers a simple, powerful solution for capturing high-resolution audio for video. Selectable line-cardioid mono and internally matrixed mid-side stereo modes provide the flexibility to focus the recording on a single sound source or to widen the field for outstanding sonic realism. In either mode, the AT8024 delivers audio that is dramatically better than that supplied by the camera's internal microphone.

The AT8024 camera-mount microphone also comes equipped with a three-position adjustable attenuator (-20 dB, -10 dB, 0 dB) to capture even soft and very loud sound passages without distortion. A switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations. The microphone is powered by a single AA battery for optimal performance with high max SPL, and features an integral camera shoe mount that attaches quickly to DSLRs and shoe-equipped camcorders.

Key Features
  • Designed for use with DSLR and other video cameras, delivering dramatically better sound quality than the camera's internal microphone
  • Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
  • Handles loud sound sources without distortion
  • Three-position adjustable attenuator and switchable low-frequency roll-off
  • Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise
  • Compact, lightweight design with integral shoe mount
  • Red/green LED power indicator
  • Includes windscreen, fuzzy windscreen and AA battery

Specifications

ELEMENTSFixed-charge back plate, permanently polarized condenser
POLAR PATTERNSLine-cardioid, LR stereo
FREQUENCY RESPONSE40-15,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY–37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)
IMPEDANCE50 ohms
MAXIMUM INPUT SOUND LEVEL128 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)Mono: 106 dB, 1 kHz at Max SPL;
Stereo: 104 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIOMono: 72 dB, 1 kHz at 1 Pa;
Stereo: 70 dB, 1 kHz at 1 Pa
BATTERY TYPEType: One 1.5V AA (included);
Life: 80 hours, typical
SWITCHESMono, M-S Stereo;
Three-position attenuator;
Flat, roll-off
WEIGHT114 g (4.0 oz)
DIMENSIONS172.0 mm (6.77") long,
24.0 mm (0.94") maximum body diameter
OUTPUT CONNECTOR3.5 mm stereo mini-plug on cable
CABLEPermanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
ACCESSORIES FURNISHEDWindscreen; fuzzy windscreen; AA battery
AUDIO-TECHNICA CASE STYLECM1
