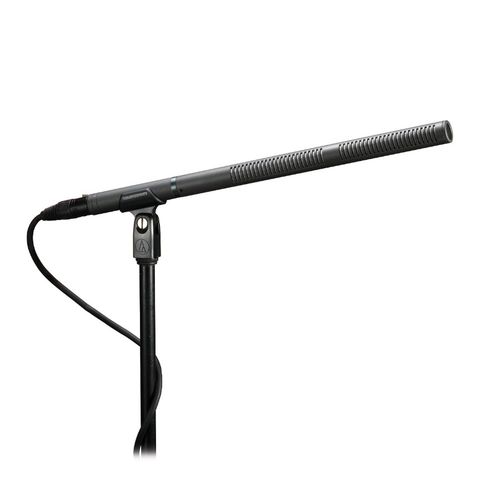

Audio Technica Line + Gradient Microphone - AT8035
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Line + Gradient Condenser Microphone
The length (14.53") of the AT8035 Line + Gradient Condenser Microphone is well-suited for ENG, outdoor recording and other specialized uses. The microphone is designed for video production and broadcast (ENG/EFP) audio acquisition. Suited for both boom & handheld use, it provides the narrow acceptance angle desirable for long-distance sound pickup, featuring excellent sound rejection from the sides and rear of mic and switchable low-frequency roll-off. It operates on battery or phantom power.
Key Features- Designed for video production and broadcast (ENG/EFP) audio acquisition
- Length is well-suited for ENG, outdoor recording and other specialized uses
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Excellent sound rejection from the sides and rear of mic
- Switchable low-frequency roll-off
- Operates on battery or phantom power
- RoHS compliant-free from all substances specified in the EU directive on hazardous substances
Specifications
ELEMENT | Fixed-charge back plate, permanently polarized condenser |
POLAR PATTERN | Line + gradient |
FREQUENCY RESPONSE | 40-20,000 Hz |
LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
OPEN CIRCUIT SENSITIVITY | Phantom: –38 dB (12.5 mV) re 1V at 1 Pa Battery: –39 dB (11.2 mV) re 1V at 1 Pa |
IMPEDANCE | Phantom: 250 ohms Battery: 300 ohms |
MAXIMUM INPUT SOUND LEVEL | Phantom: 132 dB SPL, 1 kHz at 1% T.H.D. Battery: 120 dB SPL, 1 kHz at 1% T.H.D. |
DYNAMIC RANGE (typical) | Phantom: 110 dB, 1 kHz at Max SPL Battery: 98 dB, 1 kHz at Max SPL |
SIGNAL-TO-NOISE RATIO | 72 dB, 1 kHz at 1 Pa |
PHANTOM POWER REQUIREMENTS | 11-52V DC, 2 mA typical |
BATTERY TYPE | 1.5V AA/UM3 |
BATTERY CURRENT / LIFE | 0.4 mA / 1200 hours typical (alkaline) |
SWITCH | Flat, roll-off |
WEIGHT | 170 g (6.0 oz) |
DIMENSIONS | 369.0 mm (14.53") long, 21.0 mm (0.83") diameter |
OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
ACCESSORIES FURNISHED | AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8132 windscreen; battery; protective carrying case |
AUDIO-TECHNICA CASE STYLE | SG1 |
