Audio Technica Cardioid condenser microphone - ATM350D

Audio Technica Cardioid condenser microphone - ATM350D

Part Number: ATM350D
Our Price: $349.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

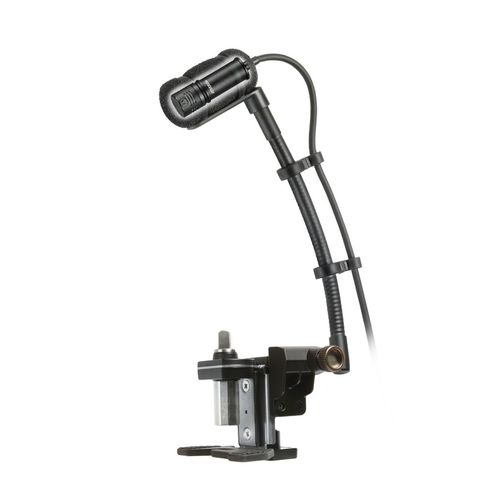

Cardioid Condenser Instrument Microphone with Drum Mounting System (5" Gooseneck)

Designed for use with drums, the ATM350D UniMount® mounting system gives you the tools to perform with confidence. The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491D drum mount and strong, flexible AT8490 5" gooseneck, the mic can be securely fastened to the drum and positioned to stay where you want it. The drum mount's unique spring-loaded mechanism clamps it tightly to a drum lug (without hindering your ability to adjust the lug) and provides excellent shock resistance for the mic; the gooseneck's rigidity ensures that it won't flop around no matter how aggressively you play.

The microphone's cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.

Key Features
  • Low-profile mic design for minimum visibility
  • Crisp, clear, well-balanced microphone response, even at high SPLs
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • UniMount® drum mount with unique spring-loaded mechanism attaches securely to a drum lug, and provides excellent shock resistance for the microphone
  • Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
  • In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
  • Interchangeable elements available for hypercardioid and omnidirectional polar patterns
  • Included violin mount with hook-and-loop fastener provides an additional mounting option

Specifications

ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNCardioid
FREQUENCY RESPONSE40 – 20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY–49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE200 ohms
MAXIMUM INPUT SOUND LEVEL159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11– 52V DC, 3.5 mA typical
SWITCHFlat, roll-off
WEIGHT (MICROPHONE)14.5 g (0.5 oz)
WEIGHT (POWER MODULE)90 g (3.2 oz)
DIMENSIONS (MICROPHONE)37.8 mm (1.49") long,
12.2 mm (0.48") maximum body diameter
DIMENSIONS (POWER MODULE)92 mm (3.62") long,
18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE)Integral 3-pin XLRM-type
CABLE4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTSUE-H hypercardioid (100°);
UE-O omnidirectional (360°)
ACCESSORIES FURNISHEDATM350a cardioid condenser microphone; AT8543 power module; AT8491D UniMount® drum mount; AT8490 UniMount® 5" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
AUDIO-TECHNICA CASE STYLEM36
