Description

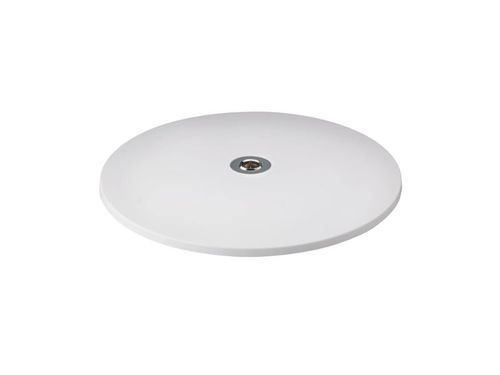

Audio-Technica Power Module with Danteâ„¢ Network Output ATND8734a
The ATND8734a is a Dante-enabled wall/ceiling plate power module designed for use with compatible microphones that have a TA3F-type connector, including the ES931/MIC and ES933/MIC. The power module is equipped with an RJ45 output jack that allows for easy connection to the network via CAT5e (or better) cable.
Key Features- Connects directly to network via Ethernet cable – no need for expensive audio cable or soldering
- TB3M-type input for quick mounting of microphone
- Red/green LED indicator
- Input gain, low-cut filter and LED indicator ring are controlled remotely
- Logic input accepts external switch for connection to the Dante network
- Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
- Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more
Specifications
Frequency Response | 20-20,000 Hz |
Low Frequency Roll Off | 80 Hz, 18 dB/octave |
Maximum Input Sound Level | -15 dBu @ +30 dB gain | -25 dBu @ +40 dB gain | -35 dBu @ +50 dB gain |
Weight | 330g |
