Description

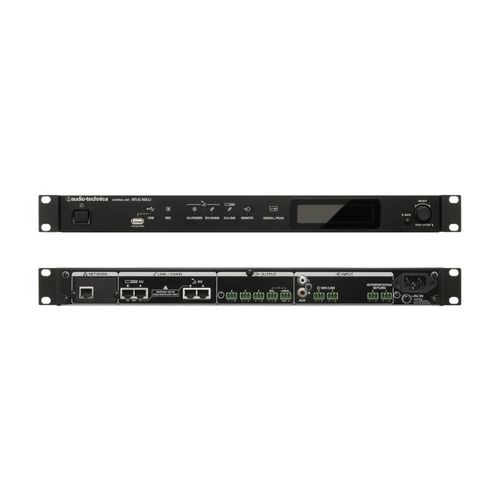

Audio-Technica Wired Control Unit ATUC-50CU
The 19" rack-mountable ATUC-50CU provides 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. It can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. Offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings. Can record WAV and MP3 files onto a connected USB mass storage device. Includes two Mic/Line inputs, two AUX inputs and two interpretation return inputs. For wired systems only.
Key Features- Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor
- Easy plug-and-play operation
- Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units, ATUC-50IU integration units, and ATUC-50INT interpretation units*
- 3 ATUC-50CUs can be linked via Cat5e (or better) cable, providing a wired system with up to 300 DU/IU/INTs
- Systems can be configured in either daisy chain or ring topology
- Built-in WAV and MP3 recorder lets you record to a USB mass storage device
- Control available through Web Remote interface and third-party IP Control Systems
Specifications
Dynamic range | 110 dB A-weighted |
Frequency response | + 1.0, – 2.0dB, 20Hz-20kHz, refer to +4dBu output @ 1kHz |
Connections | Mic/Line ×2, AUX (ST) ×1, INTERPRETATION RETURN ×2 | Outputs: Balanced ×4, Unbalanced ×1 | LINK /CHAIN : DU A/B Terminals, CU A/B Terminals (DU C/D Terminals) |
Signal-to-noise Ratio | 90 dB, A-weighted |
