Description
Audio-Technica ATW-3211/892XDE2 3000 Series Wireless System
Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica's fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.

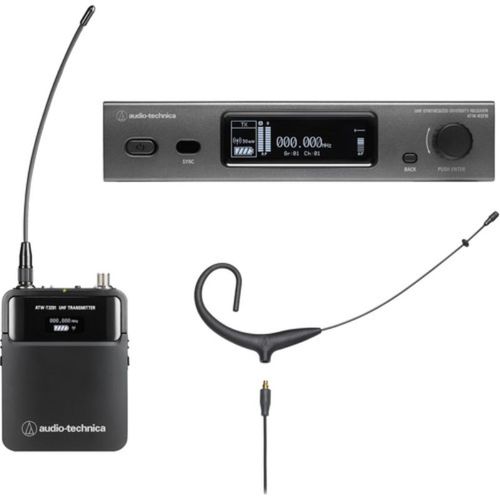

The ATW-3211/892XDE2 includes ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP892xcH MicroSet omnidirectional condenser headworn microphone. With a class-leading 60 MHz tuning range - more than twice that offered by the previous versions - the 3000 Series systems are available in 6 frequency bands - DE2 (470-530 MHz), EE1 (530-590 MHz), EF1 (590-650 MHz), FG1 (650-700 MHz), GH2 (795 - 806 MHz) and HH2 (821 - 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.
- 60 MHz UHF tuning bandwidth in each of 6 available frequency bands
- Unique multifunction button to switch to a backup frequency
- Frequency scan and IR sync functionality for ease of setup
- Body-pack transmitter features tactile mute toggle switch
- Charging terminals on transmitter to recharge NiMH batteries
- Rugged 4-pin cH-style screw-down connector provides secure connection
Specifications
Operating Frequencies | Band DE2: 470.125 to 529.975 MHz |
Minimum Frequency Step | 25 kHz |
Modulation Mode | FM |
Maximum Deviation | ATW-T3201: ±38 kHz (THD:10%), ATW-T3202: ±36 kHz (THD:10%) |
Dynamic Range | ATW-T3201 Mic input: > 115 dB (A-weighted), typical, ATW-T3201 Inst input: > 112dB (A-weighted), typical; ATW-T3202: > 115 dB (A-weighted), typical |
Total Harmonic Distortion | <1.0% (at 1 kHz, ±17.5 kHz deviation) |
Frequency Response | ATW-T3201: 31 Hz to 15500 Hz, ATW-T3202: 25 Hz to 16700 Hz |
Operating Range | 100 m |
