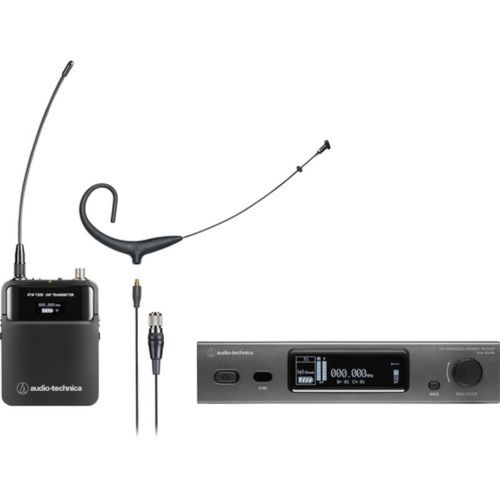

Audio-Technica 3000 Series Network Wireless System ATW-3211N894XDE2
The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Configurations with the ATW-R3210N network-enabled receiver let you take full advantage of A-T’s Wireless Manager software for setup, monitoring and control.
Key Features- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
- Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
Specifications
Receiving System | True Diversity |
Image Rejection | 60 dB nominal |
RF Sensitivity | 20 dBuV at 60 dBA S/N ratio (50 ohms termination) |
Maximum Output Level | XLR, balanced: +14 dBV 6.3 mm (1/4"), unbalanced: +8 dBV |
Antenna Input | BNC-type, 50 ohms |
Antenna Power | 12 V DC, 160 mA (combined) |
Polar Pattern | Omnidirectional |
Frequency Response | 20-20,000 Hz |
