Description

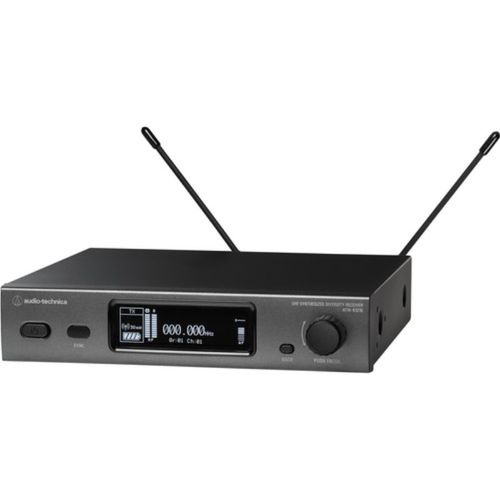

Audio-Technica 3000 Series (4th Gen) diversity receiver ATW-R3210EE1
The ATW-R3210 receiver features automatic frequency scanning that eliminates the need for searching for clear channels by automatically selecting the most appropriate frequency for the area in which the wireless is operating. 25kHz frequency spacing enables the system to easily find an open frequency in crowded RF environments, while pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system. Once selected, frequencies can be synced with transmitters using the system's IR sync functionality. The system's squelch setting can be configured to automatically adjust to maximize range while minimizing potential interference. Advanced digital Tone Lock squelch provides enhanced rejection of interference.
Key Features- Extremely wide 60MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands
- True Diversity operation reduces dropouts
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Receiver include OLED screens for optimal readout of key settings and alerts
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
Specifications
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 2400 |
Diversity | True Diversity |
RF Frequency Band | EE1: 530 to 590 MHz |
RF Bandwidth | 60 MHz |
Frequency Step Size | 25 kHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 328.1' / 100 m |
