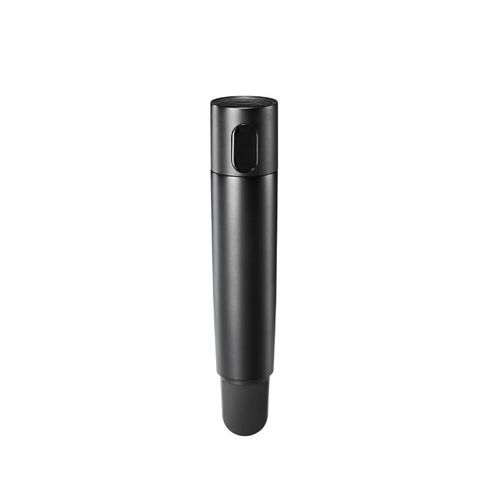

Audio Technica 3000 Series Handheld TX - ATW-T3202EE1A

Audio Technica 3000 Series Handheld TX - ATW-T3202EE1A

Part Number: ATW-T3202EE1A
Our Price: $249.00
This Item Is Discontinued

Description

Audio-Technica 3000 Series (4th gen) handheld microphone/transmitter ATW-T3202EE1

3000 Series (4th gen) handheld microphone/transmitter with industry-standard thread mount for use with interchangeable wireless microphone capsules, 530-590 MHz. All transmitters operate using two AA batteries and feature high- and low-level RF output settings. The low-level setting extends battery life while retaining a strong RF signal link. Charging terminals on the base of each transmitter work with the optional ATW-CHG3 and ATW-CHG3N charging docks to recharge AA NiMH batteries. Each transmitter's OLED screen presents a great deal of setup and operating information, including battery indicator, mute status and operating frequency. Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental activation.

Key Features
  • Extremely wide 60MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands
  • Several Audio-Technica interchangeable microphone capsules separately available
  • Industry-standard thread for use with interchangeable microphone capsules
  • Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency
  • IR sync functionality for ease of setup
  • Charging terminals on transmitters to recharge NiMH batteries

Specifications

Wireless TechnologyAnalog UHF
RF Frequency BandEE1: 530 to 589.975 MHz
RF Bandwidth60 MHz
Frequency Step Size25 kHz
Max Operating Range328.1' / 100 m
ModulationFM
Transmitter TypeHandheld
RF Output Power10 / 30 mW (Switchable, at 50 Ohms)
Signal ProcessingHigh-Pass Filter: 150 Hz, 6 dB/Octave Slope
Gain Range-10 to +20 dB (2 dB Steps)
