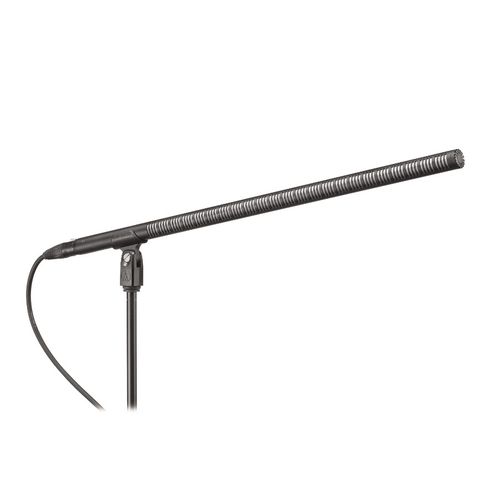

Audio Technica Line + Gradient Microphone - BP4071L

Audio Technica Line + Gradient Microphone - BP4071L

Part Number: BP4071L
Our Price: $999.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Line + Gradient Condenser Microphone

At 21.22" long, Audio-Technica's new BP4071L is among the longest shotgun microphones on the market today. Originally developed at the request of broadcast professionals, this microphone boasts an extremely narrow polar pattern, excellent rejection from the sides and rear of the microphone, along with crisp, intelligible audio reproduction. It offers switchable low-frequency roll-off and a 10 dB pad, and comes generously equipped with a stand clamp, windscreen, and case.

Key Features
  • Overall length of 21.22" with an extremely narrow, highly directional pickup pattern
  • Ideal for use in broadcasting, film/TV production, and theater sound reinforcement
  • Direct-coupled, balanced output ensures a clean signal even in high-output conditions
  • Transformerless design for improved pickup of transients
  • Rugged housing made of lightweight structural-grade aluminum alloy
  • Interference tube design for narrow acceptance angle
  • Switchable 80 Hz high-pass filter & 10 dB pad
  • RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications

ELEMENTExternally polarized (DC bias) capacitor
POLAR PATTERNLine + gradient
FREQUENCY RESPONSE20-18,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY-29 dB (35.5 mV) re 1V at 1 Pa
IMPEDANCE50 ohms
MAXIMUM INPUT SOUND LEVEL141 dB SPL, 1 kHz at 1% T.H.D.;
151 dB SPL, with 10 dB pad (nominal)
NOISE13 dB SPL
DYNAMIC RANGE (typical)128 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO81 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS48V DC, 4.8 mA typical
SWITCHESFlat, roll-off; 10 dB pad (nominal)
WEIGHT175 g (6.2 oz)
DIMENSIONS539.0 mm (21.22") long,
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
ACCESSORIES FURNISHEDAT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8147 windscreen; two O-Rings; protective carrying case
AUDIO-TECHNICA CASE STYLESG5
