Audio Technica Omnidirectional Condenser Mic - MT830CH

Description

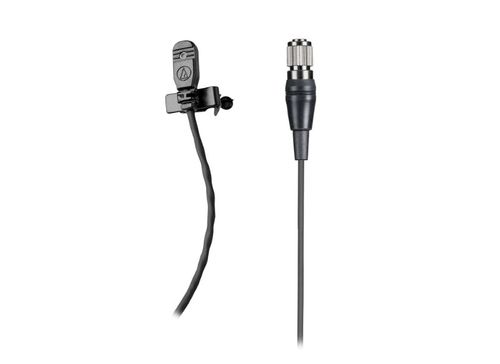

Omnidirectional Condenser Lavalier Microphone

Designed to be worn as a lavalier or hidden in loose clothing or in the hair, the MT830 omnidirectional condenser microphone provides high intelligibility for lecturers, stage/TV performers, and singers. The mic’s wide-range capability ensures clean, accurate reproduction. It operates on phantom power only.

Available configurations:

MT830R: 25' (7.6 m) permanently attached cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass filter).
MT830C: 55" (1.4 m) permanently attached cable (unterminated); no power module.
MT830cH: 55" (1.4 m) permanently attached cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.
MT830cH-TH: same as MT830cH but in "theater" color (beige).
MT830cW: 55" (1.4 m) permanently attached cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module.
MT830cW-TH: same as MT830cW but in "theater" color (beige).
MT830mW: 55" (1.4 m) permanently attached cable terminated with a 3.5 mm connector for use with Audio-Technica PRO 88W body-pack wireless transmitters; no power module.

Small size provides excellent yet unobtrusive sound pickup
High intelligibility for lecturers, stage/TV performers and singers
Wide-range capability ensures clean, accurate reproduction

Specifications

Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Omnidirectional
Frequency Response	30 - 20,000 Hz
Low Frequency Roll Off	80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity	-37 dB (14.1 mV) re 1V at 1 Pa
Maximum Input Sound Level	135 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range	108 dB, 1 kHz at Max SPL (wired only)
Signal-to-Noise Ratio	67 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA typical (wired only)
Switches	Flat, roll-off (wired only)
Weight	Microphone : 1.3 g (0.05 oz) - Power Module : 81 g (2.9 oz) (wired only)
Cable	7.6 m (25') long (permanently attached to microphone), 2.5 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type output connector
Dimensions	Microphone: 15.8 mm (0.62") long, 8.3 mm (0.33") wide, 5.0 mm (0.19") thick
Output Connector	Integral 3-pin XLRM-type (wired only)
Accessories Included	AT8538 power module (wired only); AT8420 clothing clip; AT8130 windscreens
