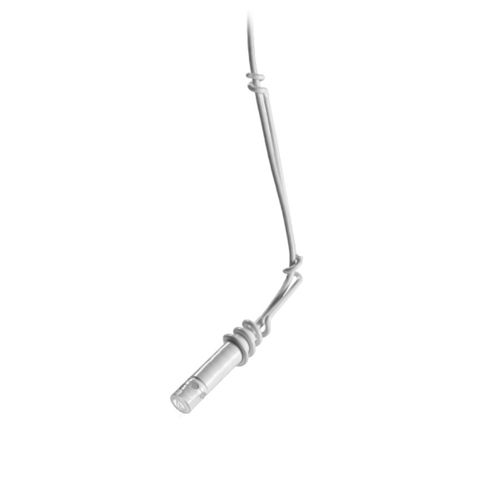

Audio Technica Cardioid Condenser Microphone - PRO45W

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

ProPoint® Cardioid Condenser Hanging Microphone

With robust construction and unobtrusive appearance, the PRO 45 and PRO 45W offer versatile sound-reinforcement solutions for speech, theater, orchestra and choir sound reinforcement and recording. The microphones' high-SPL handling is perfect for suspension over choirs and orchestras. Available in two colors: Black (PRO 45); white (PRO 45W).

Key Features

Hi-SPL handling is ideal for suspension over choirs and orchestras
Wide-range condenser element with low-mass diaphragm for superior performance
Self-contained electronics eliminate need for external power modules
Flat, smooth frequency response
25' (7.6 m) cable permanently attached between microphone and XLRM-type connector
Also available in black as PRO 45

Specifications

ELEMENT	Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN	Cardioid
FREQUENCY RESPONSE	70-16,000 Hz
OPEN CIRCUIT SENSITIVITY	-37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE	100 ohms
MAXIMUM INPUT SOUND LEVEL	134 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)	106 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO	66 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS	9-52V DC, 2 mA typical
WEIGHT	0.5 oz (15 g)
DIMENSIONS	2.24" (56.9 mm) long, 0.47" (12.0 mm) head diameter
OUTPUT CONNECTOR	3-pin XLRM-type on cable
CABLE	25' (7.6 m) long, permanently attached
ACCESSORIES FURNISHED	AT8146 windscreen; steel hanger
AUDIO-TECHNICA CASE STYLE	M21
