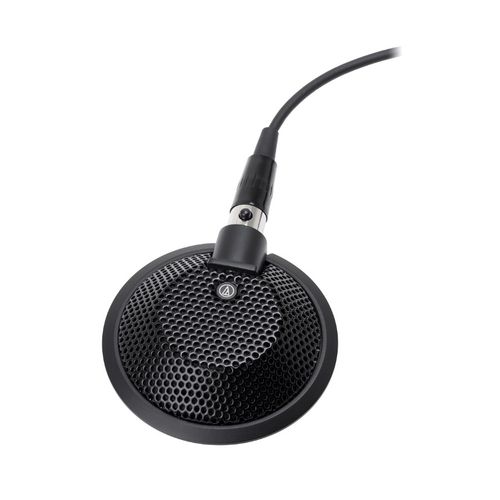

Audio Technica Omni Condenser microphone - U841R

Audio Technica Omni Condenser microphone - U841R

Part Number: U841R
Our Price: $219.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Omnidirectional Condenser Boundary Microphone

The U841R delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design. Equipped with UniGuard® RFI-shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound quality in surface-mount applications. The phantom-powered U841R is equipped with self-contained electronics, eliminating the need for an external power module.

Key Features
  • Designed for surface-mount applications where highly intelligible sound quality is required
  • Small-diameter omnidirectional capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility

Specifications

ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNOmnidirectional in hemisphere above mounting surface
FREQUENCY RESPONSE40-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY–35 dB (17.7 mV) re 1V at 1 Pa
IMPEDANCE200 ohms
MAXIMUM INPUT SOUND LEVEL130 dB, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)105 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO69 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 2 mA typical
WEIGHT (MICROPHONE)84 g (3.0 oz)
DIMENSIONS (MICROPHONE)65.0 mm (2.56") diameter,
15.1 mm (0.59") maximum height
OUTPUT CONNECTORTB3M-type
CABLE7.6 m (25.0') long, 3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors
ACCESSORY FURNISHEDSoft protective pouch
