Audio Technica Cardioid Condenser Microphone - U853RW

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

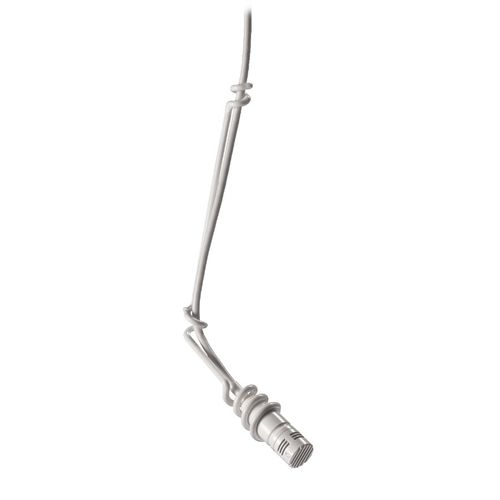

Cardioid Condenser Hanging Microphone

The white-finished version of U853R, the U853RW cardioid condenser hanging microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. The phantom-powered microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. The U853RW also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.

Key Features

Designed for suspension over choirs, instrumental groups and theater stages
Superior off-axis rejection for maximum gain before feedback
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
Low-profile design with low-reflectance finish for minimum visibility
Available in two colors: black (U853R) and white (U853RW)

Specifications

ELEMENT	Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN	Cardioid
FREQUENCY RESPONSE	30-20,000 Hz
LOW FREQUENCY ROLL-OFF	80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY	–39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE	250 ohms
MAXIMUM INPUT SOUND LEVEL	139 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)	115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO	70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS	11-52V DC, 2 mA typical
SWITCH	Flat, roll-off
WEIGHT (MICROPHONE)	0.5 oz (14 g)
WEIGHT (POWER MODULE)	2.9 oz (81 g)
DIMENSIONS (MICROPHONE)	1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter
DIMENSIONS (POWER MODULE)	3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
OUTPUT CONNECTOR (POWER MODULE)	Integral 3-pin XLRM-type
CABLE	25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS	UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine (90°)
ACCESSORIES FURNISHED	AT8153(WH) two-stage foam windscreen; AT8451(WH) steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter
AUDIO-TECHNICA CASE STYLE	M12
