Audio Technica UniLine Condenser Microphone - U853RWU

Audio Technica UniLine Condenser Microphone - U853RWU

Part Number: U853RWU
Our Price: $279.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

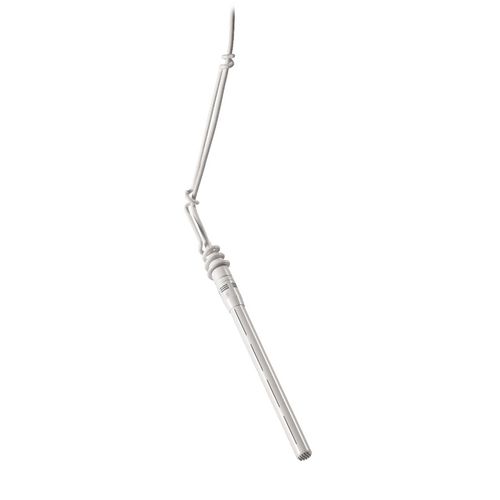

UniLine® Condenser Hanging Microphone

The white version of U853RU, the U853RWU UniLine condenser hanging microphone features Audio-Technica's UniLine® line-cardioid element and is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. The phantom-powered microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. Its 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise.

Key Features
  • Designed for suspension over choirs, instrumental groups and theater stages
  • UniLine® polar pattern provides narrow 90° acceptance angle
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Low-profile design with low-reflectance finish for minimum visibility
  • Available in two colors: black (U853RU) and white (U853RWU)

Specifications

ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNLine Cardioid
FREQUENCY RESPONSE30-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY–35 dB (17.7 mV) re 1V at 1 Pa
IMPEDANCE250 ohms
MAXIMUM INPUT SOUND LEVEL135 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 2 mA typical
SWITCHFlat, roll-off
WEIGHT (MICROPHONE)1.1 oz (30 g)
WEIGHT (POWER MODULE)2.9 oz (81 g)
DIMENSIONS (MICROPHONE)6.14" (156.0 mm) long,
0.48" (12.2 mm) diameter
DIMENSIONS (POWER MODULE)3.66" (92.9 mm) long,
0.74" (18.9 mm) diameter
OUTPUT CONNECTOR (POWER MODULE)Integral 3-pin XLRM-type
CABLE25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
OPTIONAL INTERCHANGEABLE ELEMENTSUE-C cardioid (120°);
UE-H hypercardioid (100°);
UE-O omnidirectional (360°)
ACCESSORIES FURNISHEDAT8154(WH) two-stage foam windscreen; AT8451(WH) steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter
AUDIO-TECHNICA CASE STYLEM32
