Audio Technica Cardioid Condenser Microphone - U857Q

Audio Technica Cardioid Condenser Microphone - U857Q

Part Number: U857Q
Our Price: $219.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

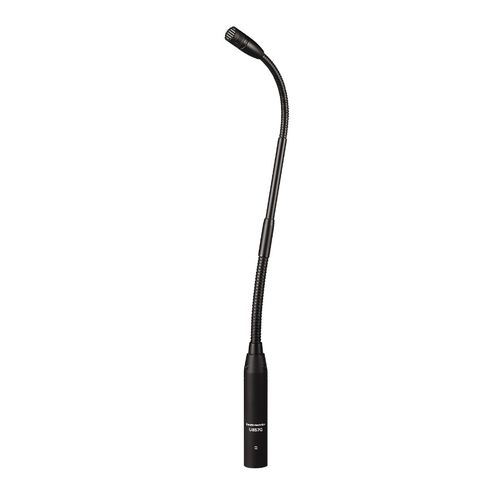

Cardioid Condenser Quick-Mount Gooseneck Microphone

Ideal for conference centers, boardrooms, courtrooms, houses of worship, and other installed applications, the U857Q is designed to plug directly into a panel- or desk-mounted XLRF-type connector. This cardioid condenser quick-mount gooseneck microphone offers unsurpassed immunity from radio frequency interference thanks to Audio-Technica's UniGuard® innovations. The 14.47" long microphone features an ultra-flexible small-diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.

Key Features
  • Designed for high-quality sound reinforcement, professional recording and broadcasting
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no "memory" permits quick positioning into desired shape
  • UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Self-contained electronics eliminate need for external power module
  • Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
  • Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
  • Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
  • Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface

Specifications

ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNCardioid
FREQUENCY RESPONSE30-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY–39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE250 ohms
MAXIMUM INPUT SOUND LEVEL139 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 2 mA typical
SWITCHFlat, roll-off
WEIGHT5.1 oz (144 g)
DIMENSIONS14.37" (365.0 mm) long,
0.48" (12.2 mm) head diameter,
0.74" (18.9 mm) base diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTSUE-H hypercardioid (100°);
UE-O omnidirectional (360°);
UE-UL UniLine® (90°)
ACCESSORIES FURNISHEDAT8153 two-stage foam windscreen; AT8662 shock mount
AUDIO-TECHNICA CASE STYLEM34
