Description

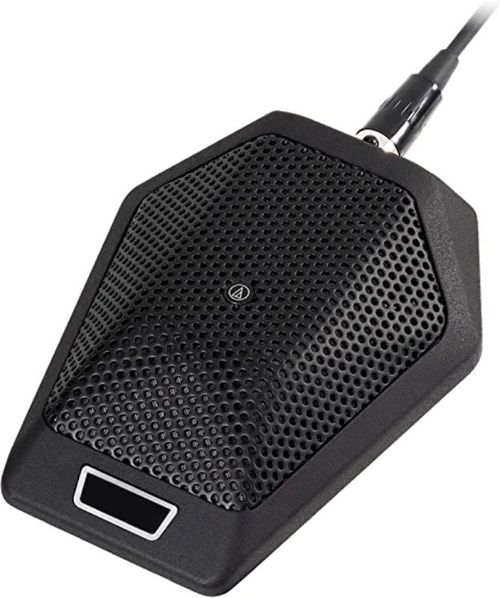

Omnidirectional Condenser Boundary Microphone
Key Features- Omnidirectional condenser boundary microphone with switch
- Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
- The capacitive touch switch can be set to any of three operating modes: “touch-on/touch-off”, “touch-to-talk” and “touch-to-mute”
- Integral, phantom-powered, two-state RGB LED indicator displays on/off status of microphone
- PivotPoint™ rotating output connector allows cable to exit from either the rear or the bottom of the microphone
- UniGuard™ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Small-diameter UniPoint™ capsule near boundary eliminates phase distortion and delivers clear, high-output performance
- Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
- Low-profile design with low-reflectance finish for minimum visibility
- Threaded inserts on bottom of microphone allow it to be mounted with screws for increased security
Specifications
Element | Fixed-charge back plate, permanently polarized condenser |
Frequency Response | 20-20,000 Hz |
Low Frequency Roll Off | 80 Hz, 18 dB/octave |
Open Circuit Sensitivity | -34 dB (19.9 mV) re 1V at 1 Pa |
Maximum Input Sound Level | 130 dB SPL, 1 kHz at 1% T.H.D. |
Dynamic Range | 104 dB, 1 kHz at Max SPL |
Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa, A-weighted |
Phantom Power Requirements | 11-52V DC, 9.3 mA |
Switches | Activation: on/off Switch function: touch on/off, momentary on, momentary off LED Color: mic on, mic off Flat, roll-off |
Weight | 253 g (8.9 oz) |
Cable | 25.0' (7.6 m) long, 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F and XLRM connectors |
Dimensions | 0.91" (23.0 mm) H x 3.30" (83.9 mm) W x 4.25" (108.0 mm) D |
Output Connector | Microphone: TB3M-type Cable: 3-pin XLRM-type |
Optional Interchangeable Elements | UE-C Cardioid (120°); UE-H hypercardioid (100°); UE-O omnidirectional (360°) |
Accessories Included | Soft protective pouch |
