Aurora In-Wall Color Touch Panel Controller - NXT-350

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description

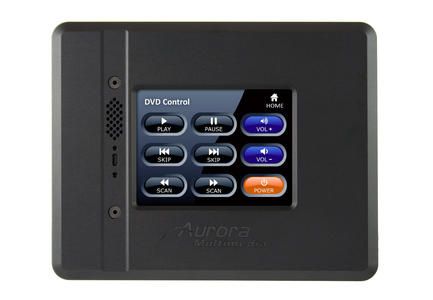

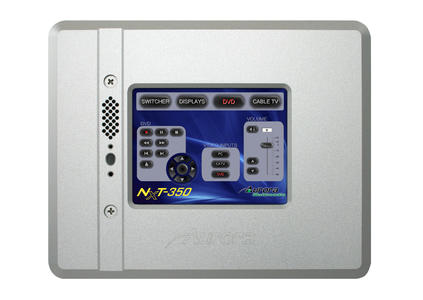

Aurora In-Wall Color Touch Panel Controller - NXT-350
NXT-350 is a hybrid in-wall touch panel. Just about anything in the room can be automated with its built in control ports and WACI engine. The NXT-350 also has line in/out audio for volume control and MP3 playback. In addition, the NXB-100 Voice-Lift option can be added to allow for off the shelf Bluetooth headsets to be used as a microphone for the system. Designed to fit in standard 2 gang electrical wall boxes, the NXT-350 will make any installation quick and easy for a low MSRP of $999.00.
NXT-350 is a hybrid in-wall touch panel. Just about anything in the room can be automated with its built in control ports and WACI engine. The NXT-350 also has line in/out audio for volume control and MP3 playback. In addition, the NXB-100 Voice-Lift option can be added to allow for off the shelf Bluetooth headsets to be used as a microphone for the system. Designed to fit in standard 2 gang electrical wall boxes, the NXT-350 will make any installation quick and easy for a low MSRP of $999.00.
Specifications
General Specifications
Processor
900MIPS
Memory
256MB Flash, 128MB DDR2
Maximum Flash
16GB
IR Learner
(1) IR receiver window on front panel (38kHz Only)
Front Bezel
Aluminum
Display
Physical
3.5" LCD Panel
Resolution
320x240
Touch Screen
4 wire resistive touch surface
Brightness
320 nits (cd/m2)
Viewing Angle
±65° horizontal, +60°/-50° vertical

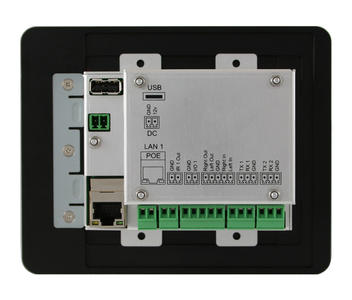

Ports
Serial
(2) RS-232
IR
(1) IR/1-way RS-232
I/O
(1) I/O
LAN
(1) 10/100 LAN Auto MDX (POE capable)
Audio
(1) Stereo Line In
(1) Stereo Line Out
(1) Front panel speaker
(1) Front panel microphone
Expansion Ports
(1) USB 2.0 Host
Physical
Power
12V DC 3.5Watts
Processor
900MIPS
Memory
256MB Flash, 128MB DDR2
Maximum Flash
16GB
IR Learner
(1) IR receiver window on front panel (38kHz Only)
Front Bezel
Aluminum
Display
Physical
3.5" LCD Panel
Resolution
320x240
Touch Screen
4 wire resistive touch surface
Brightness
320 nits (cd/m2)
Viewing Angle
±65° horizontal, +60°/-50° vertical
Ports
Serial
(2) RS-232
IR
(1) IR/1-way RS-232
I/O
(1) I/O
LAN
(1) 10/100 LAN Auto MDX (POE capable)
Audio
(1) Stereo Line In
(1) Stereo Line Out
(1) Front panel speaker
(1) Front panel microphone
Expansion Ports
(1) USB 2.0 Host
Physical
Power
12V DC 3.5Watts
