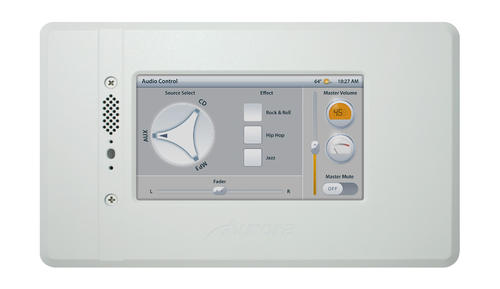

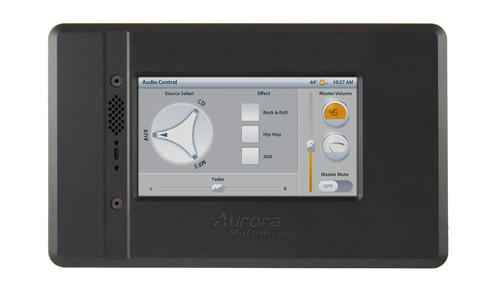

Aurora 4.7" In-Wall Color Touch Panel Controller - NXT-470

Aurora 4.7" In-Wall Color Touch Panel Controller - NXT-470

NXT-470 is a hybrid in-wall touch panel. Just about anything in the room can be automated with its built in control ports and WACI engine. The NXT-470 also has line in/out audio for volume control and MP3 playback. In addition, the NXB-100 Voice-Lift option can be added to allow for off the shelf Bluetooth headsets to be used as a microphone for the system. Designed to fit in standard 3 gang electrical wall boxes, the NXT-470 will make any installation quick and easy for a low MSRP of $1299.00.

General Specifications
Processor
900MIPS

Memory
256MB Flash, 128MB DDR2

Maximum Flash
16GB

IR Learner
(1) IR receiver window on front panel (38kHz Only)

Front Bezel
Aluminum

Display
Physical
4.7" LCD Panel

Resolution
480x272

Touch Screen
4 wire resistive touch surface

Brightness
280 nits (cd/m2)

Viewing Angle
±70° horizontal, +70°/-50° vertical

Ports
Serial
(2) RS-232

IR
(1) IR/1-way RS-232

I/O
(1) I/O

LAN
(1) 10/100 LAN Auto MDX (POE capable)

Audio
(1) Stereo Line In
(1) Stereo Line Out
(1) Front panel speaker
(1) Front panel microphone

Expansion Ports
(1) USB 2.0 Host

Physical
Power
12V DC 3.9Watts
