Aurora WACI Nugget Relay Single Port Expansion Module - WACI-NUGGET-RELAY

Aurora WACI Nugget Relay Single Port Expansion Module - WACI-NUGGET-RELAY

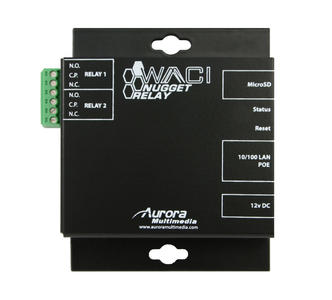

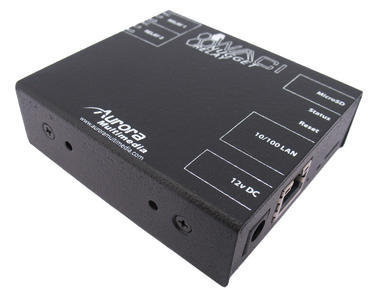

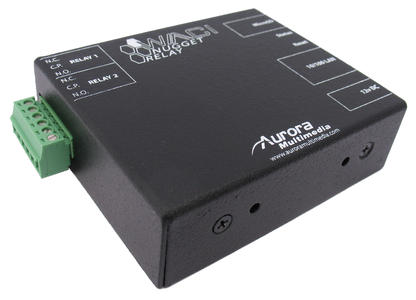

The WACI Nugget Relay is a fully functional stand-alone IP-to-relay remote access controller with internal web server. In addition, it functions as a remote expansion port for the WACI series of IP-based control systems.

Featuring 2 C-Type relays, a POE capable LAN port, and a MicroSD card slot, the WACI Nugget Relay is the ideal solution for providing LAN based control for devices needing relay control.

Benefits:

• Low cost remote IP control


• Internal web server for storing control pages and other media


• Seamless integration with the WACI series of IP control system


• Extremely small form factor and power over Ethernet capability allows for mounting in tight locations, with only a single cable run required

General

Processor
32 bit ARM Processor

LAN
10/100 Ethernet with Auto-MDX
Power over Ethernet
Yes

Power
12V 1.25A

Storage
MicroSD up to 4GB expansion for web pages to be served up and firmware upgrades

Status
Status LED

Setup
Built-in setup web pages

Control Ports
(2) C-Type Relays 24v 2A Dimensions

(WxDxH)
3.37" x 2.81" x 1" [86 x 71 x 25mm]
