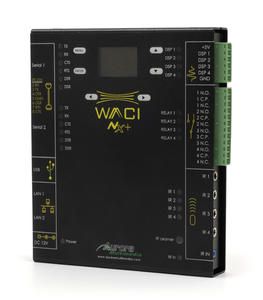

Aurora Event Controller - Ethernet, Web Page Control Interface - WACI-NX+

Aurora Event Controller - Ethernet, Web Page Control Interface - WACI-NX+

WACI NX+™ is the world’s most powerful non-proprietary IP control system. It's a web server whose web pages make things happen in the real world. The Web Accessible Control Interface is the "ambassador" between the Ethernet and intelligent electronics. Whether the product is controlled via IR, RS-232/422/485, Telnet, relays or I/Os, WACI NX houses the control interface.

WACI is accessed through any web browser running on a wired or wireless Ethernet network and requires no special software; WACI is set up using web-authoring tools. Numerous RS-232/422/485, IR, relay and DSP control ports are available, and a robust IR learner is standard. WACI is also expandable using additional WACI NX units or expansion modules.

Benefits:

• WACI can support the simplicity of the most powerful universal IR remote in the world, or it can be the heart of a complex, networked, worldwide asset management and control system


• No other control system on the market offers this combination of features in a compact, cost effective package.


• Greater expandability offers more flexibility (including secure wireless connectivity)


• Each WACI unit contains its own resources preventing slow performance and bottlenecks caused by shared systems.


• Integrates with the entire WACI control system series (including the WACI NX expansion bus add-on packs and IPF network expansion modules)


• The WACI NX expansion bus allows hard disk storage, battery backup features, streaming audio/video, and additional ports


• True platform-independent operation and a wide range of OS compatibility (including with multiple OS simultaneous access across a common network)


• Programming is as easy as writing web pages with off-the-shelf content creation applications such as Macromedia Flash, HTML, DHTML, SOAP, XML, CGI, RPC, and Visual Basic


• Compatible with Microsoft Internet Explorer 5.0 or higher, Netscape Navigator, Mozilla Firefox, and Apple Safari web browsers


• Pre-configure and test equipment, control or monitor connectivity using the built-in diagnostics and advanced event manager before writing any code


• Server side operation means that no dedicated server is required and that no special applications need to be installed on your PC to access the WACI control system. Built-in network security features (including encryption and password protected multiple access levels with intelligent remote telnet capabilities)

General Specifications
Processor
900MIPS

Memory
64MB 500DDR

Flash memory
64MB

Maximum Flash
4Gb

IR Learner
(1) IR Learner

Display
OLED 96x64 Pixels

Ports
LAN

(2) 10/100T LAN Ports with Auto MDX and Auto Polarity

Serial
(2) 2-way RS-232 ports (Port 2 capable of RS-422/485)

IR
(4) IR/serial/1-way RS-232 outputs (1) IR input

DSP
(4) DSP ports: TTL In/Out and analog inputs and outputs -5V to + 5V

Relays
(4) isolated low-voltage relays C-Type 24VDC @1A

Expansion ports
(1) High-speed, 2.1Gb/s card slot
(1) USB On-the-Go Port
(1) compact flash Type II slot for memory

Physical
Power
12V 1.25A 5.5Watts

Size
5.8" x 4.9" x 0.9" [14.73 x 12.50 x 2.29cm]

Weight
0.568lbs [258g]
