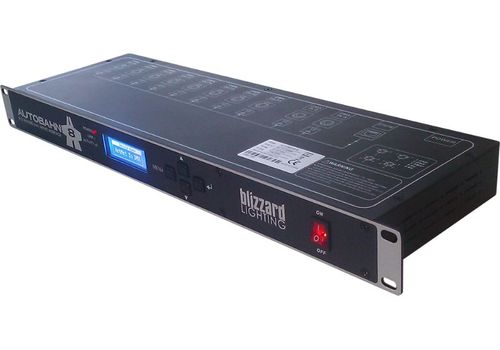

Blizzard Lighting AutoBahn 8

DMX to Art-Net Management

With usage of multiple LED fixtures and video mapping, many occasions require thousands of DMX channels. It's important to have fast DMX response and proper network load management. AutoBahn™ 8 not only provides instant response, but also a lower network load. It can allow you to increase the number of DMX universes and easily place DMX universes remotely on any TCP/IP Ethernet network. It can also be used as a DMX merger, DMX splitter, or backup device.

It features 1x RJ45 Neutrik™ EtherCON® 10/100M Ethernet LAN port with auto MDI/MDI-X (universal cable recognition), which eliminates the need of separate MDI and MDI-X ports, selector switches, or special crossover cables. It also has 2 DMX inputs which can be set as "input" or "disabled" status. You can assign each input to a specific "Universe" within the range of 0.0 - F.F. When the DMX port is set as "input", the port mode can be set as "normal" or "backup".

• ArtNet/DMX bilateral signal conversion
• DMX outputs can be set to single, zero, HTP, or LTP
• Supports standard DMX-512 and ArtNet protocol

• ArtNet/DMX bilateral signal conversion
• Supports standard DMX-512 and ArtNet protocol
• DMX in/outs can be enabled or disabled
• DMX outputs can be single, zero, HTP, or LTP
• DMX inputs can be normal or backup mode
• DMX splitter/merger functionality
• Manual IP address settings
• LCD display indicates each DMX input/output status
• Ethernet LED status indicator

• 1x RJ45 EtherCON® 10/100M Ethernet LAN port (auto MDI/MDI-X)
• 2x DMX inputs
• 8x DMX outputs

• 2-year limited warranty
