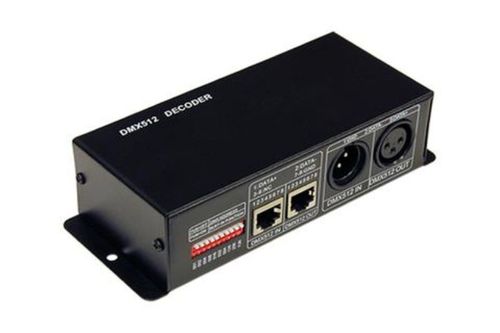

Blizzard Lighting Komply DMX

RGB(W) DMX Decoder

This is a 4-channel DMX512 decoder that can control up to 4 different 12V LED ribbon products or any one RGB(W) LED strip. It can run in stand-alone mode by via the DIP switches or under DMX512 control using XLR or RJ45 DMX512 Input/Output connections. It converts DMX signal to PWM signal, which can be controlled by a DMX512 console with 256-grayscale levels per channel. It also includes one male, and one female 3-pin XLR connector.

• Easy to mount and configure
• DMX address configurable via dip switches
• 256 level brightness control
• Full color (16.7M colors)
• 7 static colors + auto in standalone
• Can be used with a single channel for brightness control
• Overload protection, overheat protection, auto-reset
• Certifications: CE, Rohs

• DMX In/Out: RJ45 and XLR
• 7x static colors + auto in standalone
• Grayscale: 256/channel

• Dimensions: 166 x 67 x 41mm
• Weight: 0.9 lbs

• Input voltage: 12V to 24V
• Input DMX Signal: DMX512/1990 digital
• Output Signal: 4 channels @ up to 4A per channel
• Output power: 12V:<108W, 24V:<192W

• Working temperature: -20 to 60C

• 2-year limited warranty
