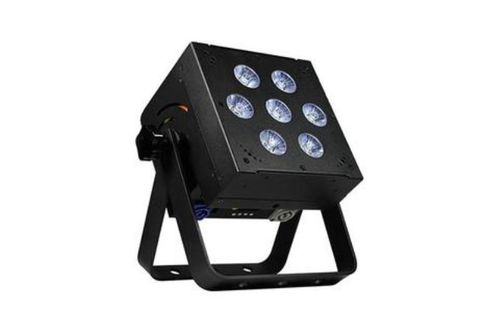

Blizzard Lighting SkyBox W-DMX

7x 15W 6-in-1 RGBAW+UV LEDs

Meet a welcomed addition to our SkyBox™ series, the SkyBox™ W-DMX®! These fixtures maintain all the same incredible features of our SkyBox™ EXA fixtures, like 7x 15w RGBAW+UV 6-in-1 LEDs and the super long-life internal Lithium-Ion battery system, but in place of its built-in Skywire™ wireless receiver, SkyBox™ W-DMX® fixtures are fitted with a completely different type of wireless technology. W-DMX™ is created and owned by Wireless Solution Sweden AB, and today is the unofficial standard for those that require the most dependable product available for transmitting lighting control data wirelessly.

The SkyBox™ W-DMX® features 6/7/8 and 11-channel control modes, which means it works great with any type of controller. Plus, the built-in 4 character/4 button LCD control panel allows total control over the fixture in all modes. Its Lithium-Ion internal battery system allows user to select one of 3 power output mode settings: High Power, Medium Power, or Battery Saver Mode. The final cherry on top? For the ultimate ease of setup, its built-in W-DMX™ receiver will provide wireless communication for over 500 meters (line-of-sight) with any W-DMX™ transmitter!

• 7x 15W (6 x 2.5w) RGBAW+UV 6-in-1 LEDs
• 395-400nM ultraviolet light output
• 2.4Ghz built-in wireless W-DMX receiver
• Intelion™ lithium-ion battery system
• 3 battery power modes
• 5 user-selectable 32-bit dimming curves
• Variable electronic dimming & strobe
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Built-in sound active programs
• Rugged and well-built
• Super-quiet variable-speed internal fan cooling
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current 400hz LED driver
• 3-pin male input and 3-pin female output
• IR remote control (sold separately)
• Available with black or white housing
• powerCON® compatible

• Light source: 7x 15-watt, 6-in-1 RGBAW LEDs
• Beam Angle: 25°
• Luminous Intensity: 10,300 Lux @ 1m, 2,850 @ 2m

• Frequency hopping W-DMX™ Protocol
• Skywire™ 2.4Ghz ISM (2.402-2.48Ghz), 512 channels, 6/7 frequency groups
• Less Than 5ms Latency
• Receiver sensitivity: -94dBm

• IR Remote Control (Part# Remote-SkyBox)
• Attachable Shroud (Part# Shroud-Rok/Sky)
• Attachable Barndoors (Part# Barndoor-RokBox)
• Attachable Diffusion Panel (Part# Diffuser-RokBox/SkyBox)
• Attachable Gel Frame (Part# Gelframe-RokBox)

• Length: 9.02 inches (229 mm)
• Width: 6.5 inches (165 mm)
• Height: 9 inches (228 cm)
• Weight: 9.9 lbs (4.5 kg)

• Protocol: USITT DMX-512
• DMX Channels: 6/7/8/11 (User Selectable)
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

• Operating Voltage: 100-264VAC, 47-63 Hertz
• Power Consumption: 84W, .54A

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs
