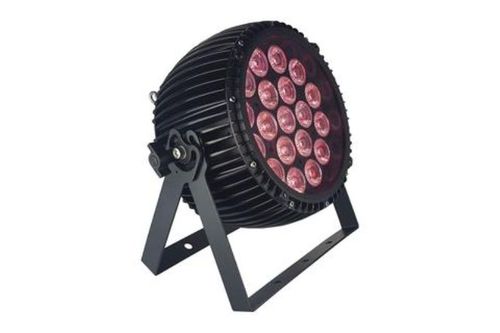

Blizzard Lighting TOURnado WIMAX Quadra

19x 15W 4-in-1 RGBW LEDs, IP65

The TOURnado™ WIMAX Quadra offers super bright RGBW color mixing from 19x 15W 4-in-1 LEDs with advanced 25° optics. It is also IP65 outdoor rated, and sports a larger natural convection cooled cast aluminum housing than previous models. Its tempered glass lens is watertight, and the back has outdoor rated 3-pin XLR data and AC power input/output connectors with rubber seals.

All TOURnado™ WIMAX fixtures come equipped with a built-in W-DMX™ receiver for ultra-stable wireless capability (500+ meters), plus an easy-to-use 4-button OLED control panel which gives users total control of master/slave settings, 5 auto modes, custom programs (up to 3* 20 scene programs), fade, strobe, manual color adjustments, multiple user-selectable 32-bit dimming modes and more.

• Color mixing via 19x 15W RGBW 4-in-1 LEDs
• IP65 rated outdoor LED fixture
• OLED control menu with 4x touch sensitive buttons
• 25-degree beam angle
• Built-in wireless W-DMX™ receiver
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Color mixing ability in standalone mode
• 4/6/10-channel DMX profiles w/32-bit dimming
• Convection cooled cast aluminum housing
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current LED driver
• IP rated locking power and 3-pin DMX connections
• Dimensions: 14x6.7x13.3 inches (355x172x337 mm)
• Weight: 17.0 lbs (7.7 kg)

• Light Source: 19* high output 15-watt RGBW LEDs
• Beam Angle: 25°
• Flicker-free LEDs
• Luminous Intensity:
• 12,344 Lux (1,146.8 fc) @ 2.5m | 3,415 Lux
• (317.3 fc) @ 5m

• Wireless W-DMX™
• Transmission band: 2.4Ghz ISM (2.4-2.525Ghz)
• Channels: 512
• Receiver sensitivity: -94dBm

• Protocol: USITT DMX-512
• 4/6/10-channel DMX modes
• Standalone, master/slave, DMX modes
• IP65 Seetronic 3-pin DMX input/output
• 4-button OLED control menu display

• 100-264VAC, 47-63 Hz
• Power Consumption: 180W, 1.54A, PF: .99

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs
• cETLus certified
