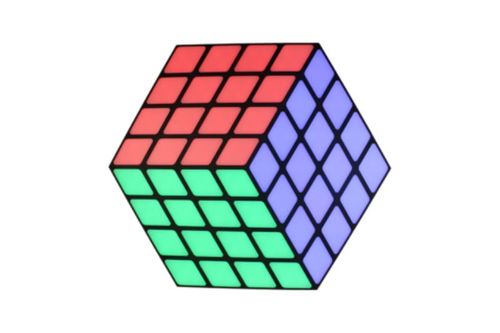

Blizzard Lighting Squarodox 3D

192x RGB 5050 LED 3D Effect Panel

Squarodox™ 3D is a large (23.6 x 19.7 x 3.2 inch) LED effect panel that displays dazzling 3D light shows with its built-in programs, sound activated modes, or even your own pixel mapped video. It features a killer 3D cube layout with fixtures that can be linked together to create infinitely large wall of light.

• 192 3-in-1 RGB 5050 LED chips
• Built-in auto & sound active modes
• 23.6" x 19.7" x 3.2" large FX panel
• LED digital display
• DMX channels: 5/8/41/144/149
• PowerCON compatible power input/output
• 3-pin DMX input/output
• Steel omega mounting bracket

• 192 3-in-1 RGB 5050 LED chips

• 23.6 x 19.7 x 3.2 inches (600 x 500 x 82 mm)
• 12.8 lbs (5.8 kg)

• Protocol: USITT DMX-512
• DMX Channels: 5/8/41/144/149
• 3-pin DMX In/Out
• Operating Modes: DMX512, master/slave, auto, sound active

• 90-260VAC, 50-60Hz
• Power Consumption: 48W, .66A, PF: .62

• 2-year limited warranty
