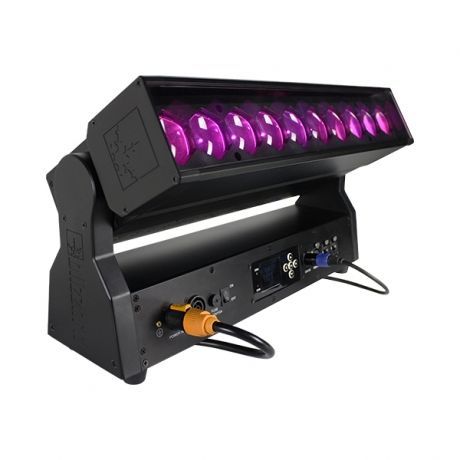

Blizzard Lighting MystACL Z

10x 30W 4-in-1 RGBW LEDs

MystACL™ Z is a high-performance LED bar loaded with 10* 30W OSRAM™ Ostar 4-in-1 RGBW LEDs. DMX control offers full pixel mapping capabilities, plus 3 to 60 degree zoom, creating effects that range from a narrow angle light curtain to a wide angle wash.

It also features 210 degree motorized tilt (8-16 bit), unique 3-layer pixel set & macro effects, multiple built-in programs, color presets, 3/5-pin DMX + RJ45 input/output connections (Art-Net ready), and powerCON® TRUE1-compatible power input/output connections.

• 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours
• Fast and precise 3-60° zoomable beam angle
• 8-16 bit motorized 210 degree tilt
• Single or dual pixel mapping capabilities via DMX
• 3-layer effects via DMX with configurable pixel sets & macros
• Built-in macros with patterns + multiple color presets
• Smooth electronic dimming, 0-100%
• 1-10Hz strobe effects
• Efficient low noise fan cooling system
• 3/5-pin DMX + RJ45 input/output connections
• PowerCON® TRUE1-compatible power input/output
• Dual omega brackets with 1/4-turn fasteners

• 8-16 bit motorized 210 degree tilt
• 10,524 Lux @ 2.5M (narrow) 1,015 Lux @ 2.5M (wide)
• 6,105 Lux @ 5M (narrow) 241 Lux @ 5M (wide)
• Flicker-free LEDs

• 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours
• 3-60° zoomable beam angle

• 19.7" x 5.9" x 13.4" (50 x 15 x 34 cm)
• 20.1 Lbs. (9.5kg)

• Protocol: USITT DMX-512, Art-Net
• DMX channels: 13/26/28/46-channel modes
• Easy-to-use 5-button control panel with LCD display
• Operating modes: DMX512, master/slave, auto, sound active

• 100-240VAC, 50-60Hz
• Power Consumption: 261W, 2.26A, PF: .99
• PowerCON™ TRUE1-compatible AC power In/Out

• 2-year limited warranty
