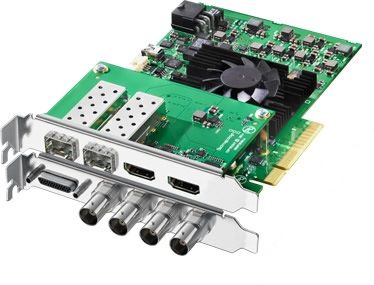

Blackmagic Design DeckLink 4K Extreme 12G - BMD-BDLKHDEXTR4K12G

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

The ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 60p! Capture 10-bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!

Connections

2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.

2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.

1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.

1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.

2 Channels of professional balanced analog audio via XLR connectors.

2 Channels of professional balanced analog audio via XLR connectors.

2 Channels unbalanced with sample rate converter.

2 Channels unbalanced.

16 Channels embedded in SD/HD/2K/4K.

16 Channels embedded in SD/HD/2K/4K.

HDMI type A connector with support for 2160p60.

HDMI type A connector with support for 2160p60.

8 Channels embedded in SD/HD/4K.

8 Channels embedded in SD/HD/4K.

Black burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.

Sony™ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control.

PCI Express 8 lane Gen 2, compatible with 8 and 16 lane PCIe with HDMI or SDI mezzanine card.

Codecs

Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Desktop Video and Blackmagic driver on Linux.

Firmware built into software driver. Loaded at system start or via updater software.

PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro X
• Premiere Pro CC
• Avid Media Composer
• After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Autodesk Smoke
• Photoshop CC

Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

Video Standards

525/29.97 NTSC, 625/25 PAL.

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25.

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level A, SMPTE 425M level B, SMPTE 435, ITU-R BT.656 and ITU-R BT.601.

VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.

Television standard sample rate of 48 kHz at 24-bit.

4:2:2, 4:4:4 and 4:4:4:4.

8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4 in HD, 2K and 4K.

REC 601, REC 709

HDMI 2.0 supports Deep Color and automatically configures to connected display.

HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Composite and S-Video. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.

Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.

Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.

DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

Hardware based real time on output.

Dual stream and frame packed capture and playback.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 64-bit or Windows 8 64-bit.
• Linux

What's Included

• DeckLink 4K Extreme 12G
• HDMI mezzanine card
• SD card containing Blackmagic software driver
• SD card containing DaVinci Resolve Lite
• Breakout cable for analog and RS-422 control.
• External power cable

Warranty

3 Year Limited Manufacturer's Warranty.
