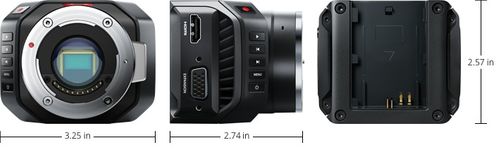

Blackmagic Design Blackmagic Micro Cinema Camera - BMD-CINECAMMICHDMFT

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

The world’s smallest digital film camera with Super 16mm sensor and 13 stops of dynamic range that is designed to be operated remotely! Features a revolutionary expansion port with PWM and S.Bus inputs so you can use a model airplane remote control to operate the camera wirelessly. Includes a built in SD card recorder for capturing up to 1080HD in CinemaDNG RAW or ProRes, MFT lens mount and operates up to 60 fps with global shutter up to 30 fps.

Camera Features

12.48mm x 7.02mm (Super 16)

1920 x 1080

1080p23.98, 24, 25, 29.97, 30

1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

13 stops

Remote focus control via expansion connector when using compatible lenses.

Iris control via Rewind and Forward buttons, plus remote control via expansion connector when using compatible lenses.

Active MFT mount

6 control buttons including Record, Play, Rewind, Forward, Menu, and Power. 4 channel PWM plus 1 x S.Bus remote via expansion connector

Integrated stereo microphone, active when camera is recording.

1 x 1/4" (top), 3 x 1/4" (bottom)

Storage Features

Removable SDXC and SDHC cards.

Mac OS Extended or exFAT format. SD cards can be formatted in camera, or on any Mac or Windows computer. Formatting in camera recommended.

• 1920 x 1080
• CinemaDNG RAW - 65 MB/s
• Apple ProRes 422 HQ - 27.5 MB/s
• Apple ProRes 422 - 18.4 MB/s
• Apple ProRes 422 LT - 12.75 MB/s
• Apple ProRes Proxy - 5.6 MB/s
• Rates based on 30 frames per second.

Lossless CinemaDNG RAW at 1920 x 1080 with film dynamic range. Apple ProRes 422 HQ, 422, 422 LT and 422 Proxy at 1920 x 1080 with either film or video dynamic range.

Connections

1 x HDMI Type A output

• DB-HD15 serial connector provides support for:
• Power input
• LANC input
• 1 x S.Bus channel input
• 4 x PWM channel input
• Genlock input
• Composite video output

1 x 3.5mm stereo audio at line or mic level. Can also be used for timecode input.

2 channels 48 kHz and 24-bit.

Lens control, recording parameters and record trigger start/stop trigger via LANC and PWM or S.Bus remote channels

USB 2.0 Mini-B port for software updates.

Software

• DaVinci Resolve Lite grading software.
• SD card for Mac OS X and Windows.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.

Power Requirements

Canon LP-E6

Approximately 1 hour 30 minutes

12V-20V

What's Included

• Blackmagic Micro Cinema Camera
• Expansion cable
• LP-E6 battery
• Turret dust cap
• 12V AC Adapter

Warranty

12 Month Limited Manufacturer's Warranty
