Blackmagic Design Blackmagic URSA Viewfinder - BMD-CINEURSANEVFP

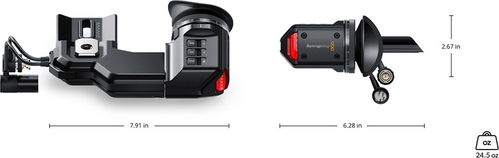

Blackmagic URSA Viewfinder

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and hand-held shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!

Connections

1 x 3G-SDI BNC.

1 x 4 pin XLR 12V.

USB 2.0 Mini-B port for software updates.

Features

Full 1920 x 1080.

Up to 60fps

OLED

6.22 Million Pixels

24 bit RGB, 16.7 million colors

4 Element diopter.

-4 to +3

Buttons for settings, short cut features and navigating menus.

Built in overlay display processor and top mounted buttons.

Can be tilted vertically and extended for left or right eye use.

LED tally light.

Camera mount with adjustment.

Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Arduino Shield.

Operating Systems

• macOS 10.12 Sierra
• macOS 10.13 High Sierra or later
• Windows 8.1 or Windows 10

Power Requirements

12V power input via 4 pin XLR connected via 12v power output.

Environmental Specifications

0° to 40° C (32° to 104° F)

-20° to 60° C (-4° to 140° F)

0% to 90% non-condensing

What's Included

• Blackmagic URSA Viewfinder
• 3/8 inch viewfinder mounting thumb screw for URSA

Recommended Accessories

Blackmagic URSA Mini Shoulder kit is required for mounting URSA Viewfinder on URSA Mini or URSA Mini Pro.

Warranty

12 Month Limited Manufacturer's Warranty.
