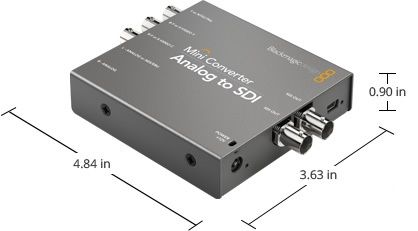

Blackmagic Design Mini Converter - Analog to SDI 2 - BMD-CONVMAAS2

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Perfect for converting from analog HD/SD component, NTSC, PAL or S-Video to SDI out with balanced jack AES/EBU and analog audio embedding. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

Connections

Automatically matches the SD and HD video input.

2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

Component SD/HD, NTSC, PAL and S-Video.

2 channels of professional balanced digital with standard 1/4 inch jack connections.

Auto detection of HD or standard definition inputs.

USB

Yes

Standards

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M- -B, ITU-R BT.656 and ITU-R BT.601.

SDI video connections are switchable between standard definition and high definition.

4:2:2

Television standard sample rate of 48 kHz and 24 bit.

4:2:2

YUV

Automatically follows format of analog input.

625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60.

25/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.

YUV

4:2:2

Software

Mac OS X™ and Windows™ software upgrade via USB.

Via included updater application.

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.

Settings Control

Mini Switches or USB software.

Power Requirements

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

6.50 Watts

12 - 31 V DC

What's Included

• Mini Converter Analog to SDI
• Software CD
• 12V universal power supply with international socket adapters

Warranty

3 Year Limited Manufacturer's Warranty.
