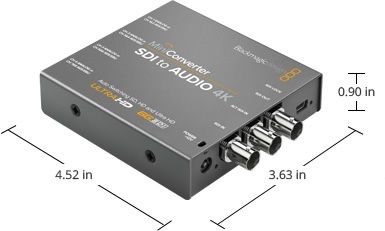

Blackmagic Design Mini Converter - SDI to Audio 4K - BMD-CONVMCSAUD4K

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!

Connections

Switchable between SD, HD, 3G and 6G-SDI.

Automatically matches the SD, HD, 3G and 6G-SDI video input.

Automatically switches over if main SDI input is lost.

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

8 channels of professional balanced digital with standard 1/4 inch jack connections.

Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs.

USB

Yes

Standards

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036

SDI video connections are switchable between standard definition and high definition.

4:2:2, 4:4:4

Television standard sample rate of 48 kHz and 24 bit.

4:2:2, 4:4:4

YUV, RGB

Automatically selects between SD, HD, 3G and 6G-SDI.

525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30.

Software

Mac OS X™ and Windows™ software upgrade via USB.

Via included updater application.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.

Settings Control

Mini Switches or USB software.

Power Requirements

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

5.52 Watts

12V - 31V DC

What's Included

• Mini Converter SDI to Audio 4K
• 12V universal power supply with international socket adapters

Warranty

3 Year Limited Manufacturer's Warranty.
