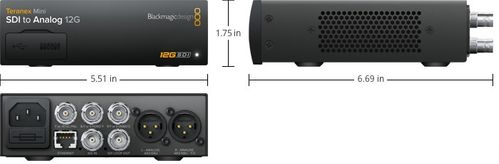

Blackmagic Design Teranex Mini - SDI to Analog 12G - BMD-CONVNTRM/BA/SDIAN

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.

Connections

1 x 12G-SDI SD/HD/2K/4K auto switching.

1 x 12G-SDI loop output.

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.

4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.

Automatic switching between SD/HD/2K and 4K.

USB or Ethernet.

Yes

Standards

525/29.97 NTSC, 625/25 PAL

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-A, SMPTE 424M-B, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601

SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.

4:2:2 and 4:4:4

Television standard sample rate of 48 kHz and 24-bit.

4:2:2 and 4:4:4

YUV

Automatically detects SD, HD or 12G-SDI.

525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60

REC 601, REC 709

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

Format Conversion

HD down conversion

Software

Mac OS X™ and Windows™ software upgrade via USB and Ethernet.

Via included updater application.

Settings Control

Mini Switches, USB and Ethernet via free software utility

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Can be powered via 48V DC using PoE+ (power over ethernet).

15 Watts

90 - 240V AC

What's Included

• Teranex Mini - SDI to Analog 12G
• Software SD Card

Warranty

3 year Limited Manufacturer’s Warranty.
