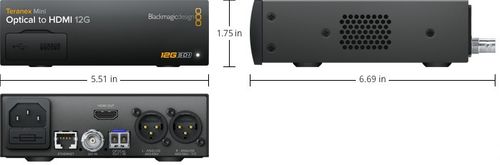

Blackmagic Design Teranex Mini - Optical to HDMI 12G - BMD-CONVNTRM/MA/OPTH

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Convert from 12G optical fiber and 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with Ultra HD as the HDMI monitor will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors

Connections

LC connector, 1310 nanometer wavelength, single mode.

1 x 12G-SDI SD/HD/2K/4K auto switching.

1 x 12G-SDI SD/HD/2K/4K auto switching.

1 x 12G-SDI loop output.

1 x HDMI 2.0 type A connector with support for 2160p60.

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.

4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.

Auto detection of SD, HD or 12G-SDI.

USB and Ethernet.

Yes

Standards

525/29.97 NTSC, 625/25 PAL.

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 297M for Optical Fiber SDI.

SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

4:2:2 and 4:4:4.

Television standard sample rate of 48 kHz and 24-bit.

4:2:2 and 4:4:4.

YUV and RGB.

525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.

REC 601, REC 709

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

Software

Mac OS X™ and Windows™ software upgrade via USB or Ethernet.

Via included updater application.

Settings Control

Mini Switches, USB and Ethernet via free software utility.

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Can be powered via 48V DC using PoE+ (power over ethernet).

15 Watts

90 - 240V AC

What's Included

• Teranex Mini - Optical to HDMI 12G
• Software SD Card

Warranty

3 year Limited Manufacturer’s Warranty.
