Blackmagic Design GPI and Tally Interface - BMD-SWTALGPI8

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.

Connections

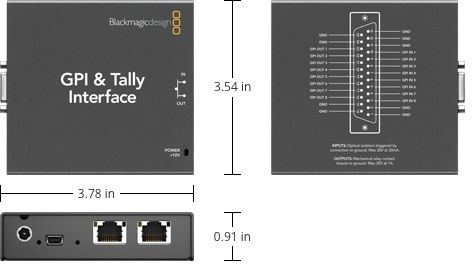

25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.

1 x USB 2.0 high speed interface for configuration and firmware updates.

Optical isolators triggered by connection to ground. Max 5V at 14mA.

Mechanical relay contact closure to ground. Max 30V at 1A.

10/100 BaseT with loop through for connecting to other ethernet enabled equipment.

Software

Configured via ATEM Switcher Utility.

Firmware built into software driver. Loaded at system startup or via updater software.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.

Power Requirements

12V power supply included with international socket adapters for all countries.

What's Included

• GPI and Tally Interface
• Software CD
• Power Supply

Warranty

12 Months Limited Manufacturer's Warranty.
