Bogen Communications Amplified Drop-In Ceiling Speakers (Single) - ACD2X2

Bogen Communications Amplified Drop-In Ceiling Speakers (Single) - ACD2X2

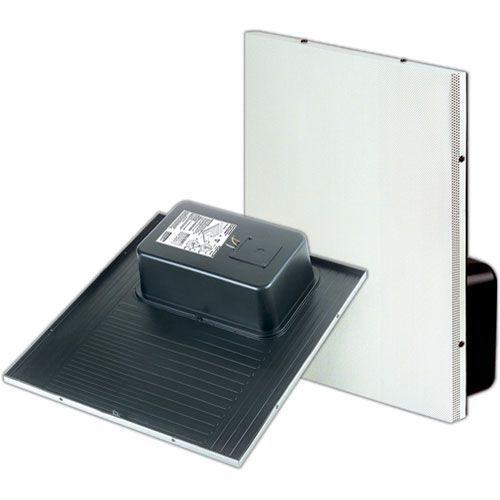

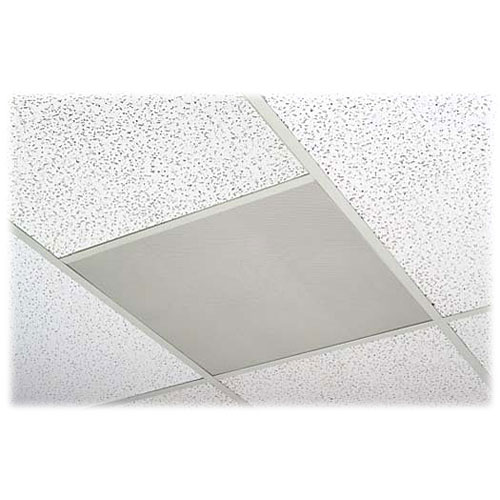

The ACD2X2 from Bogen is an Amplified Drop-in Ceiling Speaker that is quick and easy to install and drop in place. The 2 x 2' design fits both 2 x 2' and 2 x 4' ceiling grids. The ACD2X2 includes an 8" full-range cone speaker powered by 1W with a front mounted volume control. This speaker is fully enclosed and constructed of industrial grade steel with a finely perforated front grill in an off-white finish.

• Complies with NFPA National Code 160b and UL-2043


• Self-contained 1W amplifier with front mounted volume control

Active or Passive Active

Frequency Response 95Hz - 12kHz

Power Output 1W

Maximum Sound Pressure Level (SPL) 94dB

Nominal Sensitivity 125mVrms

Impedance 2 kOhms

Beamwidth 100°

Driver 8" cone speaker with secondary cone

Enclosure Material Industrial grade steel

Input Connections Wire nuts (included in electrical box)

Dimensions 23.88 x 5 x 23.88" (606 x 127 x 606mm)

Weight 12 lbs (5.44kg)
