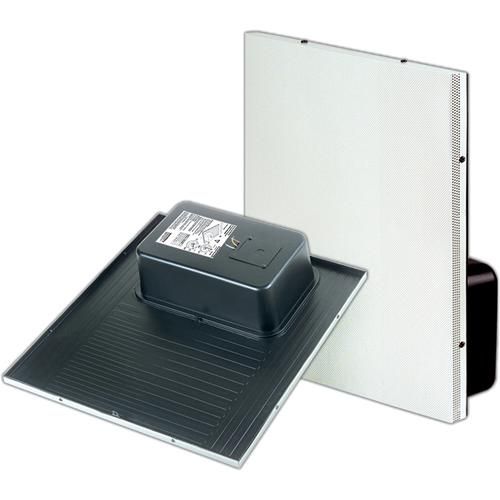

Bogen Communications Self-Amplified Drop-in Ceiling Mounted Speaker with Back Can (Bright White) - ACD2X2U

Bogen Communications Self-Amplified Drop-in Ceiling Mounted Speaker with Back Can (Bright White) - ACD2X2U

Product Highlights

• 2 x 2' (61 x 61cm) Tile
• 1W 24V Amplifier Built-in
• Protective Back Can
• Installs In Drop-Ceilings
• Includes Tile Support Rail
• Bright White Grille Finish

The Bogen CSD2X2 Self-Amplifief Drop-In Ceiling Speaker is an easy-to-install 2 x 2' ceiling tile speaker. This easily installable speaker mounts into a 2 x 2' (61 x 61cm) cut-out in the existing ceiling tile and features a built-in 1W amplifier. A tile support rail is included for a precise fit in any drop ceiling. The 8" cone speaker has a 10oz magnet with a dual 25/70V transformer.

• Built-in 1W amplifier


• Steel protective back can protects exposed drivers at the rear of the speaker


• Multi-tap rotary switch with taps for 1/4 - 4W


• 25/70V transformer


• Perforated grille on entire 2 x 1' tile

Active or Passive Passive

Frequency Response 110Hz - 20kHz

Power Capacity 4W

Maximum Sound Pressure Level (SPL) 94dB

Nominal Sensitivity Not specified by the manufacturer

Impedance 25/70V

Crossover None

Shielded No

Low Frequency Driver 8"

High Frequency Driver None

Enclosure Material Not specified by the manufacturer

Input Connections Wire nuts in electrical box

Environmental Plenum-Rated meets requirements of UL standard 2043 for smoke and heat release

Dimensions 12.9 x 4.75 x 23.75" (327 x 120.65 x 603.25mm)

Weight 12 lbs (5.44kg)

Specialties For use with 2 x 2' or 2 x 4' ceiling tiles
