Bogen Communications Amplified Horn with Volume Control (15W) - AH15A

Bogen Communications Amplified Horn with Volume Control (15W) - AH15A

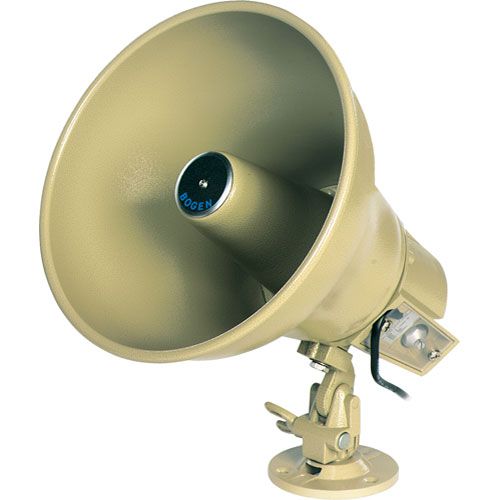

The AH15A from Bogen is an Amplified Horn powered by 15W. This rugged paging horn has a weatherproof aluminum construction making it ideal for industrial plants, warehouses, schools, construction sites, transportation terminals, and recreation areas. This horn comes with a universal mounting bracket for vertical and horizontal applications and banding slots are available for easy mounting to beams or pillars. Volume adjustments are easily made via screwdriver and a 4-conductor color-coded cable makes it easy for quick connection to audio and power sources.

• Weatherproof, all-aluminum housing


• Self-aligning, field-replaceable diaphragm


• Speaker and brackets have textured mocha enamel finish

Frequency Response 275Hz - 14kHz

Maximum Power Output 15W

Impedance 1000 ohms

SPL 121dB

Beamwidth 110°

Construction Aluminum

Current Consumption 6 CU

CU = 50mA

Voice Coil Not specified by the manufacturer

Dimensions 9" (228.6mm) Diameter x 9.25" (235mm) Depth

Weight 4 lbs (1.81kg)
