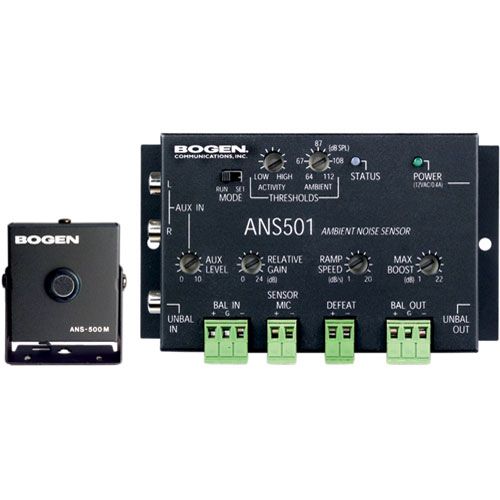

Bogen Communications Ambient Noise Sensor and Microphone for Paging Systems - ANS501

Bogen Communications Ambient Noise Sensor and Microphone for Paging Systems - ANS501

The Bogen Communications ANS501 Ambient Noise Sensor is designed for use with paging systems. The sensor monitors the ambiance levels in environments where the levels are constantly fluctuating. The sensor then compensates for the ambiance level whenever paging occurs. This results in comfortable, audible pages no matter how noisy or quiet the environment. The ANS501 sensor features adjustable threshold controls and ANS500M remote microphone.

• Activity threshold, Maximum Boost and Ambiant Mic Input threshold control adjustment


• Gain Ramp Speed and Relative Gain Control


• Bi-color Status and Power LEDs


• Balanced input and output connections

Gain 0dB to 22dB +/- 1dB

Frequency Response 5Hz to 80kHz

Input Impedance Aux Input: Unbalanced 10k ohms

Unbalanced Input: 20k ohms Balanced Input: 20k ohms

Output Impedance Unbalanced Output: 300 ohms

Balanced Output: 600 ohms

Connectors RCA Types and Pluggable Screw Terminal

Weight 12 oz

Dimensions 5.25 x 3 x 1.25" (133.35 x 76.2 x 31.75mm)
