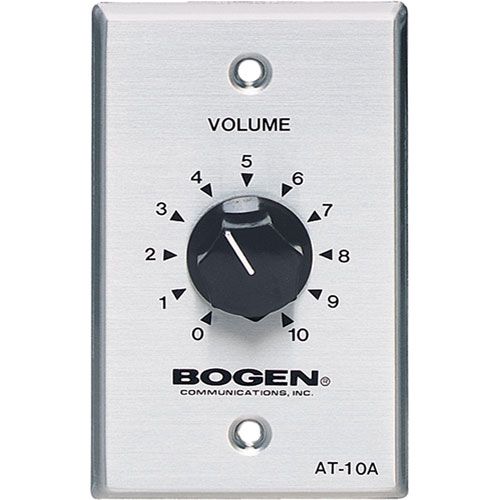

Bogen Communications 10W Attenuator - AT10A

Bogen Communications 10W Attenuator - AT10A

The AT10A 10W Attenuator from Bogen can control up to 10W of speakers within a 25V or 70V system. Control local volume without affecting the main volume setting. Ten attenuation steps and an off setting make it easy to find the perfect setting. Installation is simple as this control mounts in a single electrical box.

• Attenuation in 3 dB increments except for two lowest settings, which provide 6 dB reduction increments


• Mounts simply in single electrical box

Features:

• Adjusts loudspeaker output levels on 25V and 70V systems
• 2 models control up to 10-watt and 35-watt speaker systems
• 10 attenuation steps and an off setting
• Attenuation in 3 dB increments except for two lowest settings, which provide 6 dB reduction increments
• Mounts in standard electrical box, single (AT10A) or double (AT35A)
• Simple connections

The speaker line attenuator shall be a Bogen model (specify AT10A or AT35A), and shall permit setting the output level at loudspeakers on a 25V or 70V line without altering the amplifier volume setting. The attenuator shall provide a choice of 10 stops and an “off” position, and shall be capable of controlling up to 10-/35-watt speaker systems. The attenuator shall measure (2-7/8" W x 4-5/8" H x 3" D for AT10A or 4- 3/4" W x 4-3/4" H x 2-1/2" D for AT35A) and weigh (1 lb. for AT10A or 2 lb. for AT35A).
